7871B6G Сервер HS22V, Xeon 6C E5649 80W 2.53GHz/1333MHz/12MB, 3x4 7871B6G (LENOVO)
7871B6G Сервер HS22V, Xeon 6C E5649 80W 2.53GHz/1333MHz/12MB, 3x4 7871B6G (LENOVO)
Краткое описание: LENOVO 7871B6G - HS22V, Xeon 6C E5649 80W 2.53GHz/1333MHz/12MB, 3x4 - Same Day Express Shipping offered Worldwide
brand_ice: IBM
Co2 Savings: 0
Chassis type: Blade
Processor manufacturer: Intel
Processor family: Xeon 5000
Processor model: E5649
Processor frequency: 2.53 GHz
Processor boost frequency: 2.93 GHz
Processor cores: 6
Processor cache: 12 MB
Motherboard chipset: Intel® 5520
Memory channels supported by processor: Triple
Number of processors installed: 1
Thermal Design Power (TDP): 80 W
Processor cache type: Smart Cache
System bus rate: 5.86 GT/s
Maximum internal memory supported by processor: 288 GB
Processor code: SLBZ8
Physical Address Extension (PAE): 40 bit
FSB Parity: No
Processor lithography: 32 nm
ECC supported by processor: Yes
Stepping: B1
Memory types supported by processor: DDR3 800/1066/1333
Thermal Monitoring Technologies: No
Processor codename: Westmere EP
Processor series: Intel Xeon 5600 Series
Embedded options available: No
Processor front side bus: 1333 MHz
Processor threads: 12
Maximum number of SMP processors: 2
Compatible processor series: Intel® Xeon®
Processor socket: Socket B (LGA 1366)
Number of QPI links: 2
Memory bandwidth supported by processor (max): 32 GB/s
Processor operating modes: 64-bit
Execute Disable Bit: Yes
Idle States: Yes
Tcase: 76.2 °C
Processor package size: 42.5 X 45 mm
CPU multiplier (bus/core ratio): 19
Supported instruction sets: SSE4.2
Bus type: QPI
Conflict-Free processor: No
Internal memory: 12 GB
Internal memory type: DDR3-SDRAM
ECC: Yes
Memory slots: 18x DIMM
Memory clock speed: 1066 MHz
Memory layout: 3 x 4 GB
Maximum internal memory: 288 GB
Maximum storage capacity: 0.1 TB
Hard drive interface: Serial ATA
Hard drive size: 1.8"
Number of hard drives supported: 2
RAID support: Yes
RAID levels: 0, 1
Optical drive type: No
Maximum graphics card memory: 16 MB
Wake-on-LAN ready: Yes
Networking features: Gigabit Ethernet
LAN controller: Broadcom BCM5709S
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports quantity: 2
USB 2.0 ports quantity: 1
PCI Express x16 slots: 2
Compatible operating systems: Windows Server 2008, 2008 R2 (32/64-bit) Windows Essential Business Server 2008 Windows Small Business Server 2008 RHEL 5.3 (32/64-bit) RHEL AS/ES/WS/HPC 4.7 (64-bit) RHEL MRG 1.0 Realtime (64-bit) SLES 11 (32/64-bit) SLES 10 (32/64-bit) SUSE Enterprise R
Intel® Turbo Boost Technology: 1.0
Intel® Insider™: No
Intel Virtualization Technology (VT-x): Yes
Intel Trusted Execution Technology: Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel Enhanced Halt State: Yes
Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Intel Flex Memory Access: No
Intel Fast Memory Access: No
Processor ARK ID: 52581
Intel® InTru™ 3D Technology: No
Intel Rapid Storage Technology: No
Enhanced Intel SpeedStep Technology: Yes
Intel® Wireless Display (Intel® WiDi): No
Intel® Anti-Theft Technology (Intel® AT): No
Intel Demand Based Switching: Yes
Intel Dual Display Capable Technology: No
Intel FDI Technology: No
Intel Clear Video Technology: No
Intel® Quick Sync Video Technology: No
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel 64: Yes
Intel® Clear Video HD Technology (Intel® CVT HD): No
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID): No
Intel® My WiFi Technology (Intel® MWT): No
Intel® vPro™ Technology: No
Redundant power supply (RPS) support: No
Number of power supply units: 1
Energy Star certified: Yes
Compliance industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Width: 245 mm
Depth: 446 mm
Height: 29 mm
Weight: 5.44 kg
Sustainability certificates: ENERGY STAR
Disk array controller: LSI Logic 53C1046E
Mac compatibility: No
Graphics card family: Matrox
Graphics adapter: G200eV
brand_ice: IBM
Co2 Savings: 0
Chassis type: Blade
Processor manufacturer: Intel
Processor family: Xeon 5000
Processor model: E5649
Processor frequency: 2.53 GHz
Processor boost frequency: 2.93 GHz
Processor cores: 6
Processor cache: 12 MB
Motherboard chipset: Intel® 5520
Memory channels supported by processor: Triple
Number of processors installed: 1
Thermal Design Power (TDP): 80 W
Processor cache type: Smart Cache
System bus rate: 5.86 GT/s
Maximum internal memory supported by processor: 288 GB
Processor code: SLBZ8
Physical Address Extension (PAE): 40 bit
FSB Parity: No
Processor lithography: 32 nm
ECC supported by processor: Yes
Stepping: B1
Memory types supported by processor: DDR3 800/1066/1333
Thermal Monitoring Technologies: No
Processor codename: Westmere EP
Processor series: Intel Xeon 5600 Series
Embedded options available: No
Processor front side bus: 1333 MHz
Processor threads: 12
Maximum number of SMP processors: 2
Compatible processor series: Intel® Xeon®
Processor socket: Socket B (LGA 1366)
Number of QPI links: 2
Memory bandwidth supported by processor (max): 32 GB/s
Processor operating modes: 64-bit
Execute Disable Bit: Yes
Idle States: Yes
Tcase: 76.2 °C
Processor package size: 42.5 X 45 mm
CPU multiplier (bus/core ratio): 19
Supported instruction sets: SSE4.2
Bus type: QPI
Conflict-Free processor: No
Internal memory: 12 GB
Internal memory type: DDR3-SDRAM
ECC: Yes
Memory slots: 18x DIMM
Memory clock speed: 1066 MHz
Memory layout: 3 x 4 GB
Maximum internal memory: 288 GB
Maximum storage capacity: 0.1 TB
Hard drive interface: Serial ATA
Hard drive size: 1.8"
Number of hard drives supported: 2
RAID support: Yes
RAID levels: 0, 1
Optical drive type: No
Maximum graphics card memory: 16 MB
Wake-on-LAN ready: Yes
Networking features: Gigabit Ethernet
LAN controller: Broadcom BCM5709S
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports quantity: 2
USB 2.0 ports quantity: 1
PCI Express x16 slots: 2
Compatible operating systems: Windows Server 2008, 2008 R2 (32/64-bit) Windows Essential Business Server 2008 Windows Small Business Server 2008 RHEL 5.3 (32/64-bit) RHEL AS/ES/WS/HPC 4.7 (64-bit) RHEL MRG 1.0 Realtime (64-bit) SLES 11 (32/64-bit) SLES 10 (32/64-bit) SUSE Enterprise R
Intel® Turbo Boost Technology: 1.0
Intel® Insider™: No
Intel Virtualization Technology (VT-x): Yes
Intel Trusted Execution Technology: Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Intel Enhanced Halt State: Yes
Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Intel Flex Memory Access: No
Intel Fast Memory Access: No
Processor ARK ID: 52581
Intel® InTru™ 3D Technology: No
Intel Rapid Storage Technology: No
Enhanced Intel SpeedStep Technology: Yes
Intel® Wireless Display (Intel® WiDi): No
Intel® Anti-Theft Technology (Intel® AT): No
Intel Demand Based Switching: Yes
Intel Dual Display Capable Technology: No
Intel FDI Technology: No
Intel Clear Video Technology: No
Intel® Quick Sync Video Technology: No
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel 64: Yes
Intel® Clear Video HD Technology (Intel® CVT HD): No
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID): No
Intel® My WiFi Technology (Intel® MWT): No
Intel® vPro™ Technology: No
Redundant power supply (RPS) support: No
Number of power supply units: 1
Energy Star certified: Yes
Compliance industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Width: 245 mm
Depth: 446 mm
Height: 29 mm
Weight: 5.44 kg
Sustainability certificates: ENERGY STAR
Disk array controller: LSI Logic 53C1046E
Mac compatibility: No
Graphics card family: Matrox
Graphics adapter: G200eV

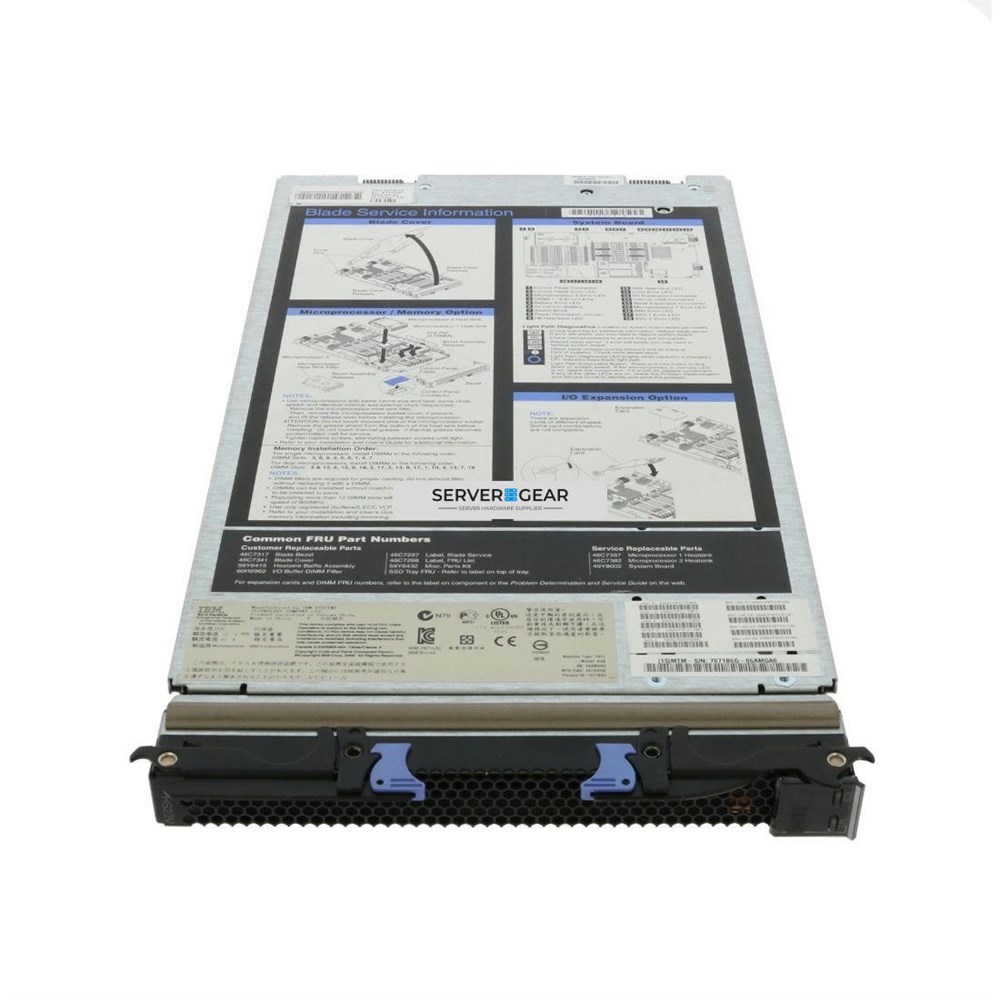

IBM eServer BladeCenter HS22V. Processor family: Intel® Xeon® 5000 Sequence, Processor frequency: 2.53 GHz, Processor model: E5649. Internal memory: 12 GB, Internal memory type: DDR3-SDRAM, Memory layout (slots x size): 3 x 4 GB. HDD size: 1.8", HDD interface: Serial ATA. Ethernet LAN. Chassis type: Blade
Highlights
- Outstanding performance for virtualization with maximum memory capacity and CPU performance.
- Improve service with unparalleled RAS features and innovative management.
- Manage growth and reduce risk on a BladeCenter® platform with proven stability.
Optimized for virtualization
The IBM BladeCenter HS22V has been designed specifically for use in virtualized environments. With 18 DIMM slots supporting up to 288 GB of DDR3 memory, the HS22V allows you to fit more and larger virtual machines per blade. Durable solid-state drives and hardware RAID-0 and -1 provide outstanding reliability when virtualizing multiple workloads on a single blade. An embedded hypervisor enables easy deployment of industry-leading third-party virtualization solutions. Combine the HS22V with Virtual Fabric for IBM BladeCenter for a flexible, easy, fast and reliable I/O solution that helps reduce cost and complexity.
Built for performance
The HS22V provides outstanding performance with support for the latest Intel® Xeon® processors, support for maximum memory capacity, fast memory throughput and high-speed I/O.
Product features
- Generous memory capacity of up to 288 GB supports more and larger virtual machines than prior generation blades.
- Highly scalable memory optimizes unpredictable workloads.
- Delivers superior energy efficiency with tools such as IBM Systems Director Active Energy Manager™, power capping and solid-state drives and energy-efficient DDR3 memory.
- Optional embedded hypervisor enables instant virtualization.
- Equipped with light path diagnostics and Predictive Failure Analysis to detect component failure before the failure occurs—helping to maximize availability.
- Controls both physical and virtual IT resources from anywhere.
Hardware summary
- Two Intel Xeon 5500 or 5600 series processors, supports advanced, standard, basic and low voltage.
- Up to 288 GB of memory with 18 VLP DDR-3 memory DIMMs.
- Support for up to two 1.8" solid-state drives.
- RAID-0, -1 and -1E (optional RAID-5 with battery-backed cache).
- 1 CIOv slot (standard PCIe daughter card) and 1 CFFh slot (high-speed PCIe daughter card).
- 10 Gigabit Ethernet Virtual Fabric Adapter ships integrated in some models.
- Broadcom 5709S onboard NIC with dual Gigabit Ethernet ports with TOE.
- Support for all BladeCenter enterprise and office chassis.
Highlights
- Outstanding performance for virtualization with maximum memory capacity and CPU performance.
- Improve service with unparalleled RAS features and innovative management.
- Manage growth and reduce risk on a BladeCenter® platform with proven stability.
Optimized for virtualization
The IBM BladeCenter HS22V has been designed specifically for use in virtualized environments. With 18 DIMM slots supporting up to 288 GB of DDR3 memory, the HS22V allows you to fit more and larger virtual machines per blade. Durable solid-state drives and hardware RAID-0 and -1 provide outstanding reliability when virtualizing multiple workloads on a single blade. An embedded hypervisor enables easy deployment of industry-leading third-party virtualization solutions. Combine the HS22V with Virtual Fabric for IBM BladeCenter for a flexible, easy, fast and reliable I/O solution that helps reduce cost and complexity.
Built for performance
The HS22V provides outstanding performance with support for the latest Intel® Xeon® processors, support for maximum memory capacity, fast memory throughput and high-speed I/O.
Product features
- Generous memory capacity of up to 288 GB supports more and larger virtual machines than prior generation blades.
- Highly scalable memory optimizes unpredictable workloads.
- Delivers superior energy efficiency with tools such as IBM Systems Director Active Energy Manager™, power capping and solid-state drives and energy-efficient DDR3 memory.
- Optional embedded hypervisor enables instant virtualization.
- Equipped with light path diagnostics and Predictive Failure Analysis to detect component failure before the failure occurs—helping to maximize availability.
- Controls both physical and virtual IT resources from anywhere.
Hardware summary
- Two Intel Xeon 5500 or 5600 series processors, supports advanced, standard, basic and low voltage.
- Up to 288 GB of memory with 18 VLP DDR-3 memory DIMMs.
- Support for up to two 1.8" solid-state drives.
- RAID-0, -1 and -1E (optional RAID-5 with battery-backed cache).
- 1 CIOv slot (standard PCIe daughter card) and 1 CFFh slot (high-speed PCIe daughter card).
- 10 Gigabit Ethernet Virtual Fabric Adapter ships integrated in some models.
- Broadcom 5709S onboard NIC with dual Gigabit Ethernet ports with TOE.
- Support for all BladeCenter enterprise and office chassis.
