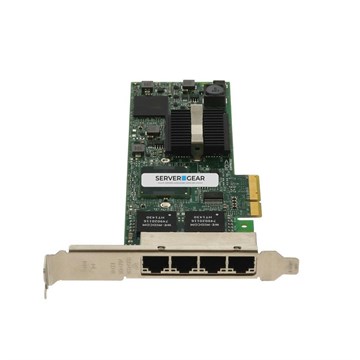

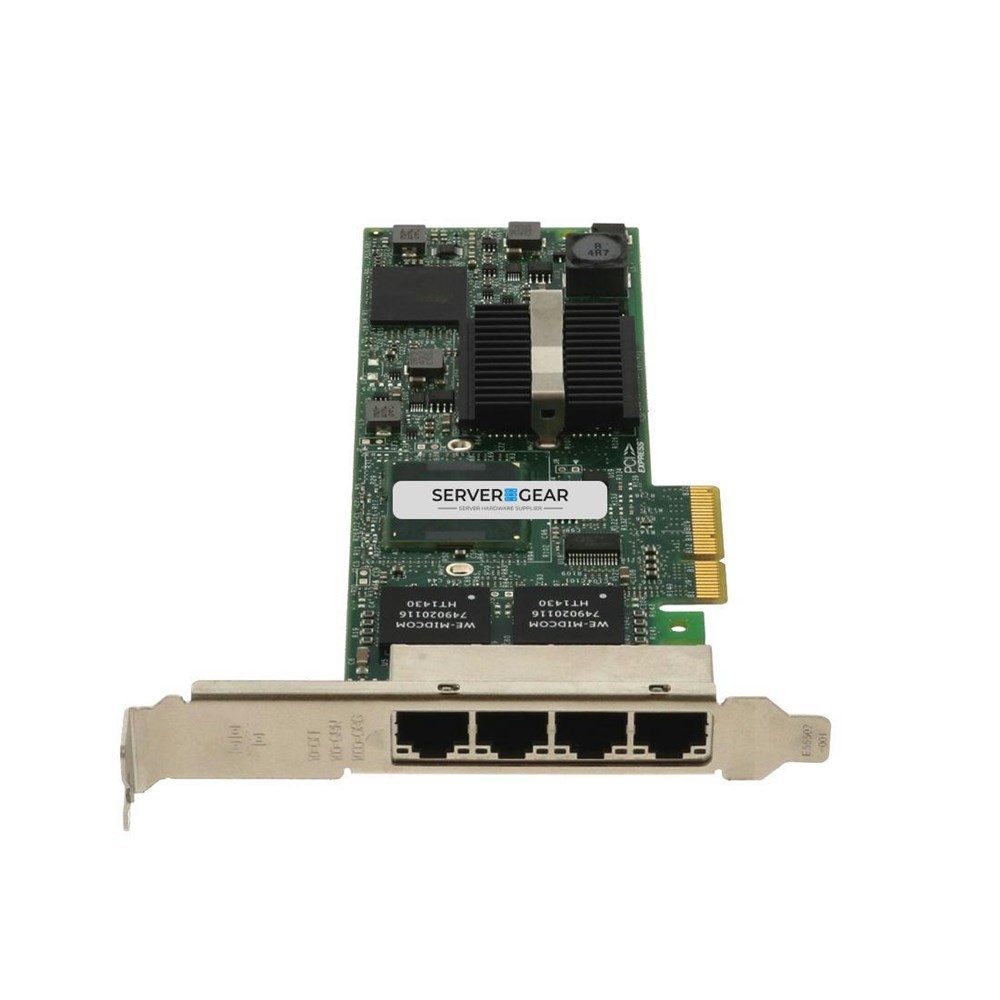

E1G44ET2 INTEL PRO/1000 ET2 QUAD PORT PCI-E SERVER E1G44ET2 (Intel)
E1G44ET2 INTEL PRO/1000 ET2 QUAD PORT PCI-E SERVER E1G44ET2 (Intel)
Краткое описание: INTEL E1G44ET2 - INTEL PRO/1000 ET2 QUAD PORT PCI-E SERVER - Same Day Express Shipping offered Worldwide
brand_ice: INTEL
Co2 Savings: 0
Internal: Yes
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports quantity: 4
PCI version: 2.0
Data transfer rate (max): 1000 Mbit/s
Ethernet LAN: Yes
Maximum operating distance: 100 m
LAN controller: Intel® 82576
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Compatible operating systems: Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Serv
Width: 69.4 mm
Depth: 167.4 mm
Cable type: Category 5 up to 100m
Market segment: Server
Intel Virtual Machine Device Queues (VMDq): Yes
Message signal interrupt: Yes
PCI-SIG* SR-IOV Capable: Yes
iWARP/RDMA: No
Intelligent Offloads: Yes
Speed & slot width: 2.5 GT/s, x4 Lane
Low halogen options available: No
Intel Flexible Port Partitioning: Yes
Thermal Design Power (TDP): 8.4 W
Number of QPI links: Quad
Ethernet adapter ARK ID: 49187
Interface type: PCIe v2.0 (2.5 GT/s)
On-chip QoS and Traffic Management: Yes
Intel Virtualization Technology for Connectivity (VT-c): Yes
Intel Ethernet Power Management: No
Commodity Classification Automated Tracking System (CCATS): G135872
Export Control Classification Number (ECCN): 5A992C
Supported data transfer rates: 10/100/1000 Mbps
Connector(s): RJ-45
Controller type: Intel 82576
Ports quantity: 4
Cabling type: Category 5 up to 100m
Bracket height: Low-Profile (LP) / Full-Height (FH)
Product type: Network Interface Card
Product brief URL: http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/gigabit-et-et2-ef-multi-port-server-adapters-brief.html
Network interface card security: IPSec
Network interface card type: Server
Product name: Intel Gigabit ET2 Quad Port Server Adapter
Network interface card cable medium: Copper
Last change: 63903513
Launch date: Q3'10
Born on date: Q3'10
Status: Launched
Storage Over Ethernet: iSCSI, NFS
Product family: Intel Gigabit server adapter
Product series: Gigabit Ethernet Adapters (1GbE)
Product codename: Portville
Harmonized System (HS) code: 8517620090
brand_ice: INTEL
Co2 Savings: 0
Internal: Yes
Connectivity technology: Wired
Host interface: PCI Express
Interface: Ethernet
Ethernet LAN (RJ-45) ports quantity: 4
PCI version: 2.0
Data transfer rate (max): 1000 Mbit/s
Ethernet LAN: Yes
Maximum operating distance: 100 m
LAN controller: Intel® 82576
Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -40 - 70 °C
Compatible operating systems: Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat Enterprise Linux* 5, 6, SUSE Linux Enterprise Serv
Width: 69.4 mm
Depth: 167.4 mm
Cable type: Category 5 up to 100m
Market segment: Server
Intel Virtual Machine Device Queues (VMDq): Yes
Message signal interrupt: Yes
PCI-SIG* SR-IOV Capable: Yes
iWARP/RDMA: No
Intelligent Offloads: Yes
Speed & slot width: 2.5 GT/s, x4 Lane
Low halogen options available: No
Intel Flexible Port Partitioning: Yes
Thermal Design Power (TDP): 8.4 W
Number of QPI links: Quad
Ethernet adapter ARK ID: 49187
Interface type: PCIe v2.0 (2.5 GT/s)
On-chip QoS and Traffic Management: Yes
Intel Virtualization Technology for Connectivity (VT-c): Yes
Intel Ethernet Power Management: No
Commodity Classification Automated Tracking System (CCATS): G135872
Export Control Classification Number (ECCN): 5A992C
Supported data transfer rates: 10/100/1000 Mbps
Connector(s): RJ-45
Controller type: Intel 82576
Ports quantity: 4
Cabling type: Category 5 up to 100m
Bracket height: Low-Profile (LP) / Full-Height (FH)
Product type: Network Interface Card
Product brief URL: http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/gigabit-et-et2-ef-multi-port-server-adapters-brief.html
Network interface card security: IPSec
Network interface card type: Server
Product name: Intel Gigabit ET2 Quad Port Server Adapter
Network interface card cable medium: Copper
Last change: 63903513
Launch date: Q3'10
Born on date: Q3'10
Status: Launched
Storage Over Ethernet: iSCSI, NFS
Product family: Intel Gigabit server adapter
Product series: Gigabit Ethernet Adapters (1GbE)
Product codename: Portville
Harmonized System (HS) code: 8517620090
Intel E1G44ET2. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 1000 Mbit/s
Dual- and quad-port Gigabit Ethernet server adapters designed for multi-core processors and optimized for virtualization. The Intel® Gigabit ET, ET2, and EF Multi-Port Server Adapters are Intel’s third generation of PCIe GbE network adapters. Built with the Intel® 82576 Gigabit Ethernet Controller, these new adapters showcase the next evolution in GbE networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization. Designed for Multi-Core Processors These dual- and quad-port adapters provide high-performing, multi-port Gigabit connectivity in a multi-core platform as well as in a virtualized environment. In a multi-core platform, the adapters support different technologies such as multiple queues, receive-side scaling, MSI-X, and Low Latency Interrupts, that help in accelerating the data across the platform, thereby improving application response times. The I/O technologies on a multi-core platform make use of the multiple queues and multiple interrupt vectors available on the network controller. These queues and interrupt vectors help in load balancing the data and interrupts amongst themselves in order to lower the load on the processors and improve overall system performance. For example, depending upon the latency sensitivity of the data, the low level latency interrupts feature can bypass the time interval for specific TCP ports or for flagged packets to give certain types of data streams the least amount of latency to the application.
Dual- and quad-port Gigabit Ethernet server adapters designed for multi-core processors and optimized for virtualization. The Intel® Gigabit ET, ET2, and EF Multi-Port Server Adapters are Intel’s third generation of PCIe GbE network adapters. Built with the Intel® 82576 Gigabit Ethernet Controller, these new adapters showcase the next evolution in GbE networking features for the enterprise network and data center. These features include support for multi-core processors and optimization for server virtualization. Designed for Multi-Core Processors These dual- and quad-port adapters provide high-performing, multi-port Gigabit connectivity in a multi-core platform as well as in a virtualized environment. In a multi-core platform, the adapters support different technologies such as multiple queues, receive-side scaling, MSI-X, and Low Latency Interrupts, that help in accelerating the data across the platform, thereby improving application response times. The I/O technologies on a multi-core platform make use of the multiple queues and multiple interrupt vectors available on the network controller. These queues and interrupt vectors help in load balancing the data and interrupts amongst themselves in order to lower the load on the processors and improve overall system performance. For example, depending upon the latency sensitivity of the data, the low level latency interrupts feature can bypass the time interval for specific TCP ports or for flagged packets to give certain types of data streams the least amount of latency to the application.
