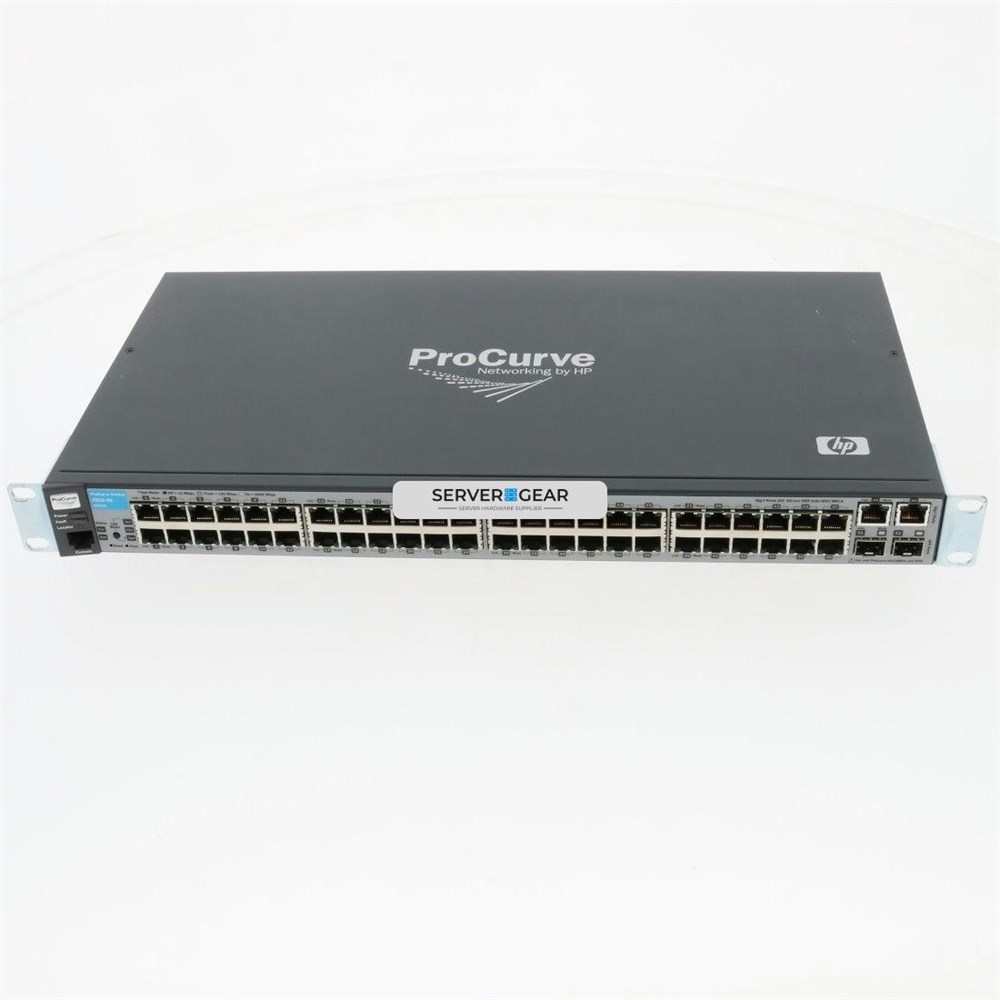

J9020-69001 Переключатель J9020-69001 (HP)

Артикул:
J9020-69001
Производитель
HP
Категория
Наличие
Есть в наличии (
9999
)
Поставщик

Не нашли, что искали?

Оставьте заявку, мы подберем решение под ваш запрос!

Краткое описание: HP 2510-48 Switch

brand_ice: HP
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
MIB support: Yes
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: 100 MB
SFP module slots quantity: 2
Console port: RJ-45
Networking standards: IEEE 802.3, IEEE 802.3u
10G support: No
Full duplex: Yes
Auto-sensing: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
Link aggregation: Yes
VLAN support: Yes
MAC address table: 8000 entries
Switching capacity: 17.6 Gbit/s
Throughput: 13 Mpps
Latency (10-100 Mbps): 4.9 µs
Latency (1 Gbps): 2.9 µs
Packet buffer memory: 0.5 MB
SSH/SSL support: Yes
Multicast support: Yes
Built-in processor: Yes
Processor model: MIPS
Processor frequency: 300 MHz
Memory type: SDRAM
Internal memory: 128 MB
Flash memory: 16 MB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 27 W
Power over Ethernet (PoE): No
Heat dissipation: 92 BTU/h
Width: 442.5 mm
Depth: 236.2 mm
Height: 43.9 mm
Weight: 2.74 kg

HPE ProCurve 2510-48. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 17.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u. Rack mounting, Form factor: 1U

Designed to provide essential solutions to small and medium businesses, the HP 2510 Switch Series consists of four Layer 2-managed switches that provide reliable 10/100 and 10/100/1000 connectivity. Building off of the popularity of the HP 2510-24 Switch, a 24-port 10/100 switch with two dual-personality ports, the 2510 switch series has expanded to include a higher-density HP 2510-48 Switch, with 48 10/100 ports and four Gigabit Ethernet uplinks. Additionally, the 2510-G switches add Gigabit Ethernet to the 2510 series, with the 2510G-24 and 2510G-48 switches, which are 24- and 48-port 10/100/1000 switches, each with four dual-personality ports, making them ideal for businesses that are ready to upgrade to increased network performance.

Quality of Service (QoS)

• IEEE 802.1p prioritization: delivers data to devices based on the priority and type of traffic


Connectivity

• 10/100 and 10/100/1000 connectivity: provides customers with the choice of selecting the network connectivity speed that best meets their needs, with a consistent user experience


Resiliency and high availability

• IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w


Manageability

• IEEE 802.1AB Link Layer Discovery Protocol (LLDP): provides automated device discovery protocol for easy mapping by network management applications


Layer 2 switching

• VLAN support and tagging: support up to 64 port-based VLANs and dynamic configuration of IEEE 802.1Q VLAN tagging, providing security between workgroups


Security

• Protected ports: provides increased security by allowing specified ports to be isolated from all other ports on the switch; the protected port or ports can communicate only with the uplinks or shared resources


Convergence

• IP multicast snooping: automatically prevents flooding of IP multicast traffic
