J9147-69001 Переключатель J9147-69001 (HP)
J9147-69001 Переключатель J9147-69001 (HP)

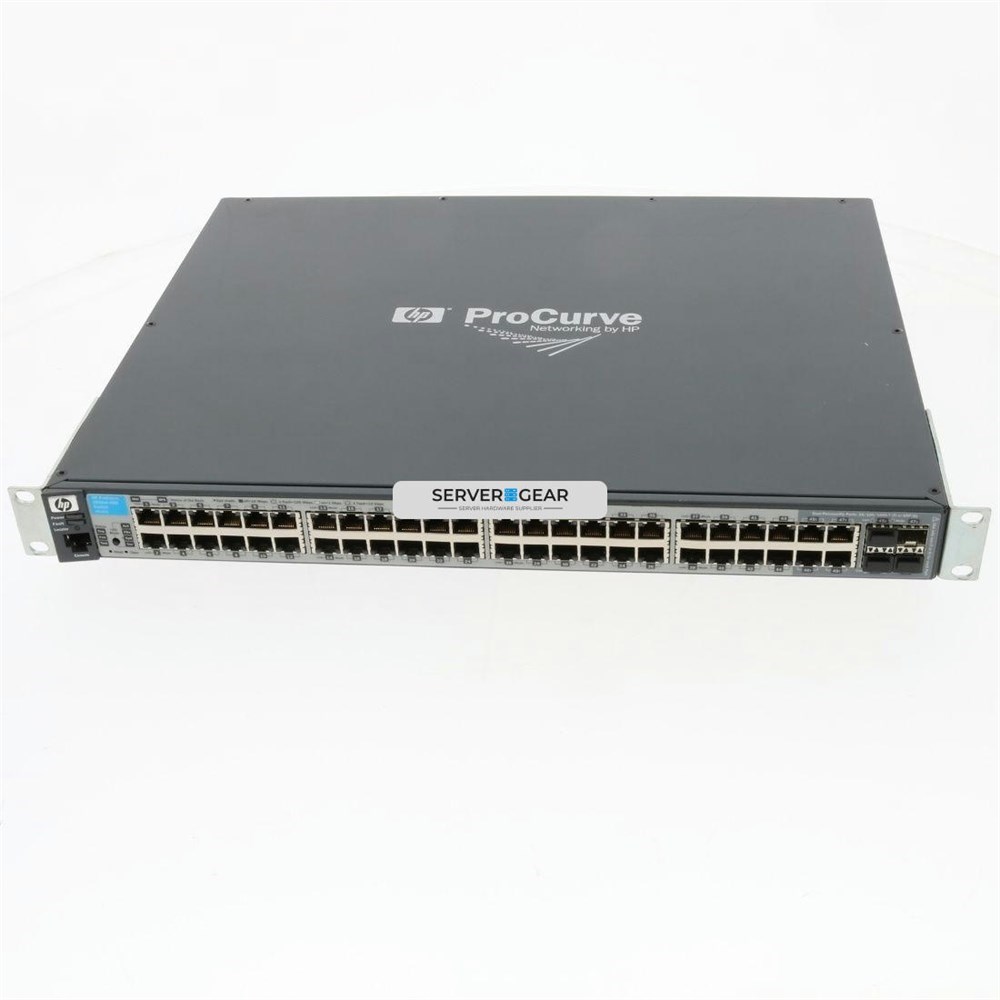

Краткое описание: HP 2910-48G al Switch
brand_ice: HP
Co2 Savings: 343.78
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
MIB support: MIB II, Bridge MIB, RIPv2 MIB, RMONv2 MIB, SMON MIB, RADIUS Client MIB, RADIUS Accounting MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, Ping MIB
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: 1 GbE Copper
Installed SFP modules quantity: 4
Combo SFP ports quantity: 4
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support: Yes
Port mirroring: Yes
Full duplex: Yes
Routing entries: 2000
Rate limiting: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
Link aggregation: Yes
MAC address table: 16000 entries
Switching capacity: 176 Gbit/s
Throughput: 131 Mpps
Latency (1 Gbps): 2.9 µs
Latency (10 Gbps): 1.3 µs
Packet buffer memory: 6 MB
Access Control List (ACL): Yes
SSH/SSL support: Yes
MAC address filtering: Yes
Multicast support: Yes
Built-in processor: Yes
Processor model: ARM11
Processor frequency: 515 MHz
Internal memory: 512 MB
Flash memory: 4 MB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 2.1 A
Power consumption (typical): 105 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 0 - 55 °C
Operating altitude: 0 - 3000 m
Heat dissipation: 356 BTU/h
Width: 442.5 mm
Depth: 365.8 mm
Height: 44 mm
Weight: 5.08 kg
brand_ice: HP
Co2 Savings: 343.78
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
System event log: Yes
MIB support: MIB II, Bridge MIB, RIPv2 MIB, RMONv2 MIB, SMON MIB, RADIUS Client MIB, RADIUS Accounting MIB, Ethernet-Like-MIB, MAU MIB, Entity MIB, Ping MIB
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: 1 GbE Copper
Installed SFP modules quantity: 4
Combo SFP ports quantity: 4
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support: Yes
Port mirroring: Yes
Full duplex: Yes
Routing entries: 2000
Rate limiting: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
Link aggregation: Yes
MAC address table: 16000 entries
Switching capacity: 176 Gbit/s
Throughput: 131 Mpps
Latency (1 Gbps): 2.9 µs
Latency (10 Gbps): 1.3 µs
Packet buffer memory: 6 MB
Access Control List (ACL): Yes
SSH/SSL support: Yes
MAC address filtering: Yes
Multicast support: Yes
Built-in processor: Yes
Processor model: ARM11
Processor frequency: 515 MHz
Internal memory: 512 MB
Flash memory: 4 MB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 2.1 A
Power consumption (typical): 105 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 0 - 55 °C
Operating altitude: 0 - 3000 m
Heat dissipation: 356 BTU/h
Width: 442.5 mm
Depth: 365.8 mm
Height: 44 mm
Weight: 5.08 kg
HP ProCurve 2910-48G al. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. Full duplex. MAC address table: 16000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U
The HP 2910 al Switch Series consists of four switches: the HP 2910-24G al and 2910-24G-PoE+ al Switches with 24 10/100/1000 ports, and the HP 2910-48G al and 2910-48G-PoE+ al Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or mini-GBIC connectivity. In addition, the 2910 al Switch Series supports up to four optional 10 Gigabit Ethernet (CX4 and/or SFP+) ports, thereby offering the most flexible and easy-to-deploy uplinks in its class. Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2910 series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at enterprise edge and remote branch offices, converged networks, and data center top of rack.
Quality of Service (QoS)
• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues
Connectivity
• 10 Gbps Ethernet connectivity: up to four optional and flexible 10-Gigabit ports (CX4 and/or SFP+), with optional interconnect kit for short-distance connectivity
Performance
• High-performance architecture: 128 Gbps switching fabric with up to 95 Mpps (24-port switches) and 176 Gbps switching fabric with up to 131 Mpps (48-port switches)
Resiliency and high availability
• IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w
Manageability
• RMON, XRMON, and sFlow: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
Layer 2 switching
• VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously
Layer 3 routing
• Static IP routing: provides manually configured routing; includes ECMP capability
The HP 2910 al Switch Series consists of four switches: the HP 2910-24G al and 2910-24G-PoE+ al Switches with 24 10/100/1000 ports, and the HP 2910-48G al and 2910-48G-PoE+ al Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or mini-GBIC connectivity. In addition, the 2910 al Switch Series supports up to four optional 10 Gigabit Ethernet (CX4 and/or SFP+) ports, thereby offering the most flexible and easy-to-deploy uplinks in its class. Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, free lifetime warranty, and free software updates, the 2910 series is a cost-effective, scalable solution for customers who are building high-performance networks. These switches can be deployed at enterprise edge and remote branch offices, converged networks, and data center top of rack.
Quality of Service (QoS)
• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification into eight priority levels mapped to eight queues
Connectivity
• 10 Gbps Ethernet connectivity: up to four optional and flexible 10-Gigabit ports (CX4 and/or SFP+), with optional interconnect kit for short-distance connectivity
Performance
• High-performance architecture: 128 Gbps switching fabric with up to 95 Mpps (24-port switches) and 176 Gbps switching fabric with up to 131 Mpps (48-port switches)
Resiliency and high availability
• IEEE 802.1s Multiple Spanning Tree: provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for IEEE 802.1d and IEEE 802.1w
Manageability
• RMON, XRMON, and sFlow: provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events
Layer 2 switching
• VLAN support and tagging: supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously
Layer 3 routing
• Static IP routing: provides manually configured routing; includes ECMP capability
