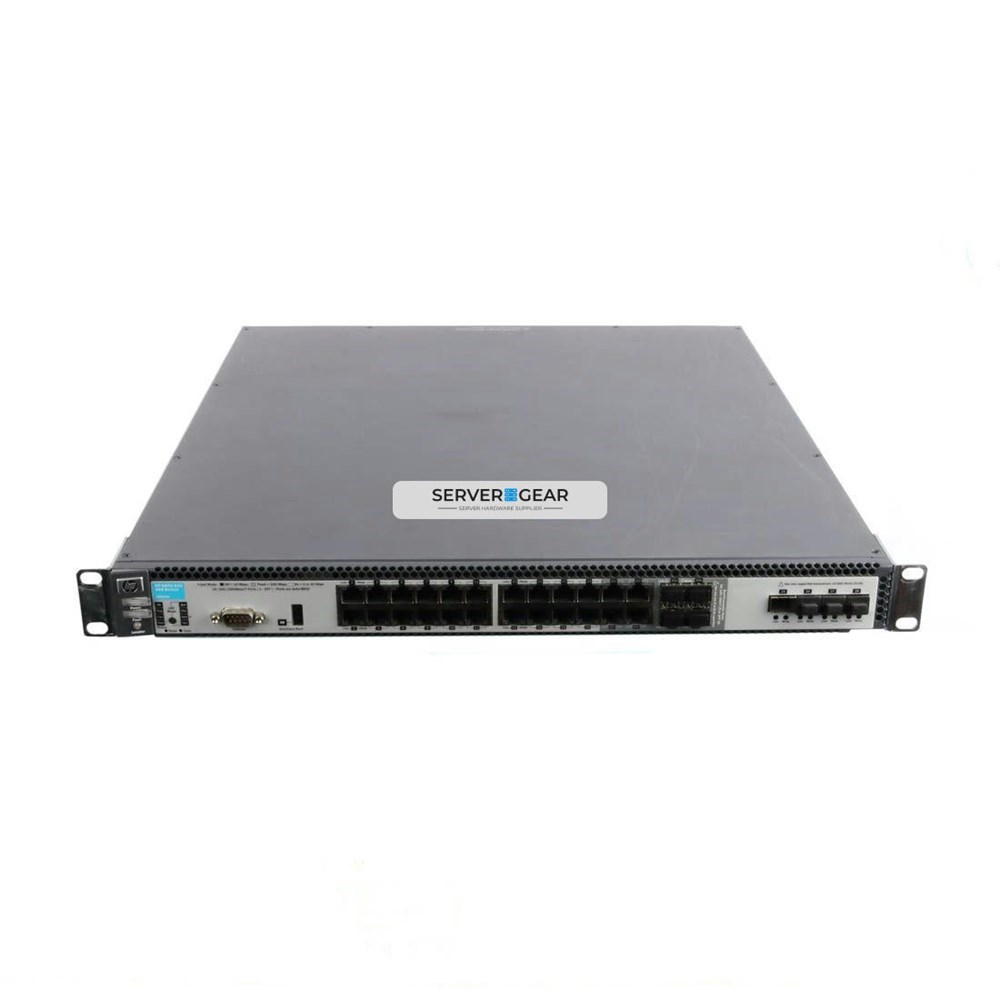

J9264A Переключатель HP Procurve 6600-24G-4XG Switch J9264A (HP)
J9264A Переключатель HP Procurve 6600-24G-4XG Switch J9264A (HP)
Краткое описание: HP J9264A - HP Procurve 6600-24G-4XG Switch - Same Day Express Shipping offered Worldwide
brand_ice: HP
Co2 Savings: 343.78
Stackable: Yes
Safety: CSA 22.2 No. 60950; EN 60950/IEC 60950; UL 60950
Electromagnetic compatibility: FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
Console port: RS-232
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
MAC address table: 10000 entries
Throughput: up to 75.7 million pps (64-byte packets)
Maximum data transfer rate: 1 Gbit/s
DHCP features: DHCP client
IGMP snooping: Yes
Supported protocols: RFC 1591 DNS (client); HTML and telnet management RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1724 RIPv2 MIB; RFC 1850 OSPFv2 MIB; RFC 2021 RMONv2 MIB; RFC 2096 IP Forwarding Table MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounti
Supported network protocols: RFC 1591 DNS (client); HTML and telnet management; IEEE 802.1ad Q-in-Q (Premium License); IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802
Built-in processor: Yes
Processor model: PowerPC MPC8540
Processor frequency: 666 MHz
Internal memory: 256 MB
Flash memory: 256 MB
Power source: 1 x J9269A
Input voltage: 100-120 / 200-240 VAC
Power consumption (typical): 204.3 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Weight: 7.8 kg
Management platform: HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu
Latency: 1000 Mb Latency: < 3.4 µs (FIFO 64-byte packets); 10 Gbps Latency: < 2.4 µs (FIFO 64-byte packets)
Dimensions (WxDxH): 546.1 x 442.5 x 43.2 mm
Connectivity technology: Wired
Power requirements: 100 -120 VAC / 200 -240 VAC; 50 /60 Hz. The switch automatically adjusts to any voltage between 100-120 and 200-240 volts and either 50 or 60 Hz
Input frequency: 50 / 60 Hz
Power supply type: 1 x J9269A
Remote administration: command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
Mounting: Telco rack: Mounts in an EIA-standard 19-in. 2-post telco rack or equipment cabinet; horizontal surface mounting only. Rack kit: Rack rails are required for mounting in HP 10000 Series 4-post racks
Memory and processor: Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, packet buffer size: 36 MB QDR SDRAM total (18 MB for 1-GbE & 10-GbE ports), 256 MB compact flash, 256 MB DDR SDRAM
Switch fabric speed: 105.6 Gbps
Management product name: HP ProCurve Manager Plus; HP ProCurve Manager (included)
Operating altitude (imperial): up to 10000 ft
Electromagnetic immunity: EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Electromagnetic emissions: FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
I/O ports: 20 auto-sensing 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T), Media Type: Auto-MDIX, Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; 4 dual-personality ports, each port can be use
Weight (imperial): 17.2 lb
Power supply slots open: 2
brand_ice: HP
Co2 Savings: 343.78
Stackable: Yes
Safety: CSA 22.2 No. 60950; EN 60950/IEC 60950; UL 60950
Electromagnetic compatibility: FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 24
Console port: RS-232
Full duplex: Yes
Flow control support: Yes
Link aggregation: Yes
MAC address table: 10000 entries
Throughput: up to 75.7 million pps (64-byte packets)
Maximum data transfer rate: 1 Gbit/s
DHCP features: DHCP client
IGMP snooping: Yes
Supported protocols: RFC 1591 DNS (client); HTML and telnet management RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 1724 RIPv2 MIB; RFC 1850 OSPFv2 MIB; RFC 2021 RMONv2 MIB; RFC 2096 IP Forwarding Table MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounti
Supported network protocols: RFC 1591 DNS (client); HTML and telnet management; IEEE 802.1ad Q-in-Q (Premium License); IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1v VLAN classification by Protocol and Port; IEEE 802
Built-in processor: Yes
Processor model: PowerPC MPC8540
Processor frequency: 666 MHz
Internal memory: 256 MB
Flash memory: 256 MB
Power source: 1 x J9269A
Input voltage: 100-120 / 200-240 VAC
Power consumption (typical): 204.3 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 5 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Weight: 7.8 kg
Management platform: HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu
Latency: 1000 Mb Latency: < 3.4 µs (FIFO 64-byte packets); 10 Gbps Latency: < 2.4 µs (FIFO 64-byte packets)
Dimensions (WxDxH): 546.1 x 442.5 x 43.2 mm
Connectivity technology: Wired
Power requirements: 100 -120 VAC / 200 -240 VAC; 50 /60 Hz. The switch automatically adjusts to any voltage between 100-120 and 200-240 volts and either 50 or 60 Hz
Input frequency: 50 / 60 Hz
Power supply type: 1 x J9269A
Remote administration: command-line interface; Web browser; configuration menu; out-of-band management (serial RS-232C)
Mounting: Telco rack: Mounts in an EIA-standard 19-in. 2-post telco rack or equipment cabinet; horizontal surface mounting only. Rack kit: Rack rails are required for mounting in HP 10000 Series 4-post racks
Memory and processor: Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, packet buffer size: 36 MB QDR SDRAM total (18 MB for 1-GbE & 10-GbE ports), 256 MB compact flash, 256 MB DDR SDRAM
Switch fabric speed: 105.6 Gbps
Management product name: HP ProCurve Manager Plus; HP ProCurve Manager (included)
Operating altitude (imperial): up to 10000 ft
Electromagnetic immunity: EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
Electromagnetic emissions: FCC Class A; VCCI Class A; EN 55022/CISPR 22 Class A
I/O ports: 20 auto-sensing 10/100/1000 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T), Media Type: Auto-MDIX, Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; 4 dual-personality ports, each port can be use
Weight (imperial): 17.2 lb
Power supply slots open: 2
HP E6600-24G-4XG Switch. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RS-232. Full duplex. MAC address table: 10000 entries
The HP ProCurve 6600 Switch Series consists of the most advanced data center server edge switches in the HP ProCurve Networking product line. The 6600 series includes 1U 10/100/1000Base-T and 10-GbE SFP+ stackables enhanced for server edge connectivity with front-to-back cooling, redundant hot-swappable power, and redundant hot-swappable fans. The foundation for all of these switches is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With a variety of connectivity interfaces and expanded buffering, the 6600 switches offer excellent investment protection, flexibility, and scalability, as well as ease of deployment and reduced operational expense.
The HP ProCurve 6600 Switch Series consists of the most advanced data center server edge switches in the HP ProCurve Networking product line. The 6600 series includes 1U 10/100/1000Base-T and 10-GbE SFP+ stackables enhanced for server edge connectivity with front-to-back cooling, redundant hot-swappable power, and redundant hot-swappable fans. The foundation for all of these switches is a purpose-built, programmable ProVision ASIC that allows the most demanding networking features, such as Quality of Service (QoS) and security, to be implemented in a scalable yet granular fashion. With a variety of connectivity interfaces and expanded buffering, the 6600 switches offer excellent investment protection, flexibility, and scalability, as well as ease of deployment and reduced operational expense.
