J9803-61001 Переключатель J9803-61001 (HP)
J9803-61001 Переключатель J9803-61001 (HP)

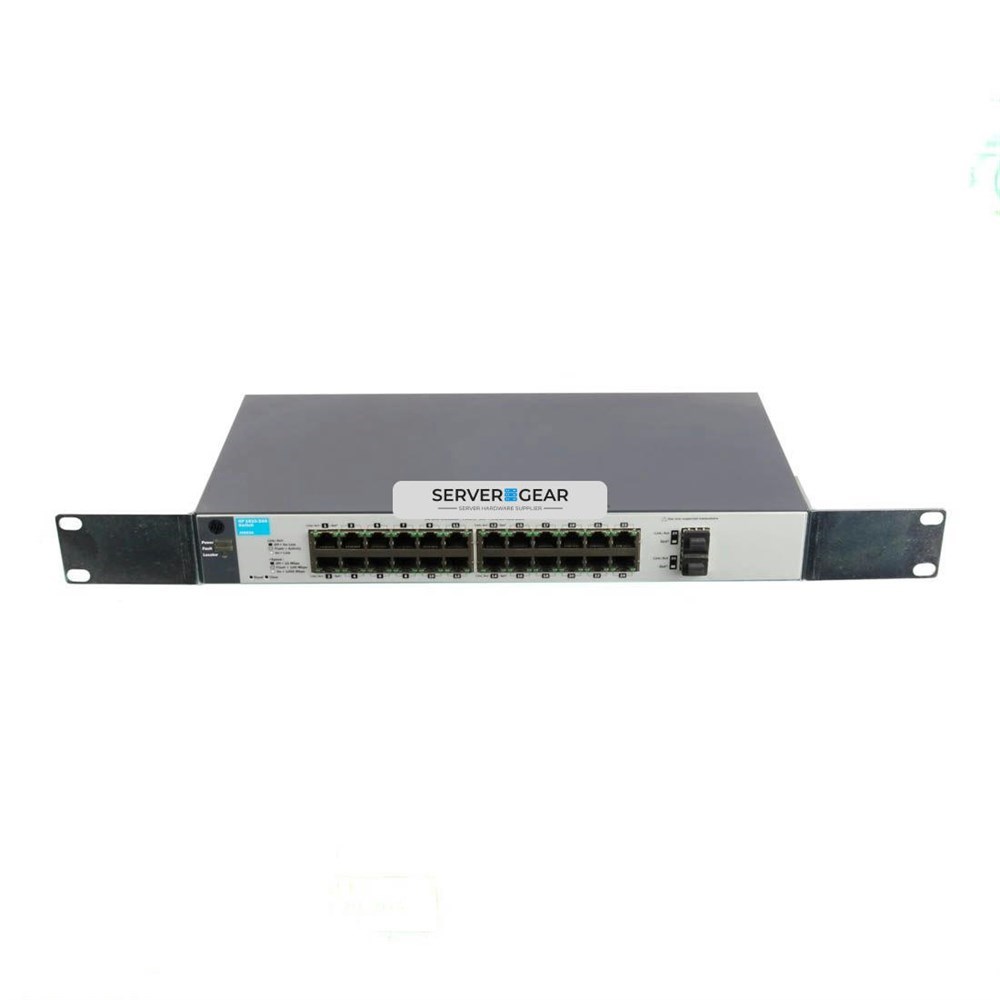

Краткое описание: HP 1810-24G v2 Switch
brand_ice: HP
Co2 Savings: 343.78
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Colour of product: Black
Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 1 GbE Copper
SFP module slots quantity: 2
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support: No
Port mirroring: Yes
Full duplex: Yes
Auto-sensing: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
Link aggregation: Yes
VLAN support: Yes
MAC address table: 8000 entries
Switching capacity: 52 Gbit/s
Throughput: 38.7 Mpps
Latency (10-100 Mbps): 3.3 µs
Latency (1 Gbps): 2.2 µs
Packet buffer memory: 0.5 MB
Multicast support: Yes
Internal memory: 128 MB
Flash memory: 8 MB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 22 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 0 - 40 °C
Width: 329.9 mm
Depth: 173 mm
Height: 43.9 mm
Weight: 1.15 kg
brand_ice: HP
Co2 Savings: 343.78
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Colour of product: Black
Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 1 GbE Copper
SFP module slots quantity: 2
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support: No
Port mirroring: Yes
Full duplex: Yes
Auto-sensing: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
Link aggregation: Yes
VLAN support: Yes
MAC address table: 8000 entries
Switching capacity: 52 Gbit/s
Throughput: 38.7 Mpps
Latency (10-100 Mbps): 3.3 µs
Latency (1 Gbps): 2.2 µs
Packet buffer memory: 0.5 MB
Multicast support: Yes
Internal memory: 128 MB
Flash memory: 8 MB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 22 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 0 - 40 °C
Width: 329.9 mm
Depth: 173 mm
Height: 43.9 mm
Weight: 1.15 kg
HPE V 1810-24G v2. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Rack mounting, Form factor: 1U
HP 1810 Switch Series devices are smart-managed, fixed-configuration Gigabit Ethernet and Fast Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution. The series includes 8- and 24-port Gigabit Ethernet and Fast Ethernet models and a 48-port Gigabit Ethernet switch. Specific models include SFP ports for fiber connectivity. All models support flexible deployment options, including mounting on walls, under tables, or on desktops. Some models are fanless, making them ideal for office deployments. The 8-port Gigabit Ethernet model can optionally be powered by an upstream Power over Ethernet (PoE) switch. Customizable features include VLANs, Spanning Tree, and link aggregation trunking. The 8- and 24-port models include the latest energy-saving capabilities—Energy Efficient Ethernet (EEE) and idle-port power down—as well as Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies. All come with a lifetime warranty.
Connectivity
• Auto-MDI/MDIX: automatically adjusts for straight-through or crossover cables on all ports
Performance
• Half-/full-duplex auto-negotiating capability on every port: doubles the throughput of every port
Quality of Service (QoS)
• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification witheight priority levels mapped to four queues
Layer 2 switching
• VLAN support and tagging: supports up to 64 port-based VLANs and dynamic configuration of IEEE 802.1Q VLAN tagging, providing security between workgroups
Resiliency and high availability
• IEEE 802.1D Spanning Tree Protocol (STP) and IEEE 802.1W Rapid Spanning Tree Protocol (RSTP): provides redundant links while preventing network loops; available only with v2 switch models
Security
• Secure Sockets Layer (SSL): encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
Ease of use
• Locator LED (switch): allows users to set the locator LED on a specific switch to either turn on, blink, or turn off; simplifies troubleshooting by making it easy to locate a particular switch within a rack of similar switches
HP 1810 Switch Series devices are smart-managed, fixed-configuration Gigabit Ethernet and Fast Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution. The series includes 8- and 24-port Gigabit Ethernet and Fast Ethernet models and a 48-port Gigabit Ethernet switch. Specific models include SFP ports for fiber connectivity. All models support flexible deployment options, including mounting on walls, under tables, or on desktops. Some models are fanless, making them ideal for office deployments. The 8-port Gigabit Ethernet model can optionally be powered by an upstream Power over Ethernet (PoE) switch. Customizable features include VLANs, Spanning Tree, and link aggregation trunking. The 8- and 24-port models include the latest energy-saving capabilities—Energy Efficient Ethernet (EEE) and idle-port power down—as well as Rapid Spanning Tree Protocol (RSTP) and DSCP QoS policies. All come with a lifetime warranty.
Connectivity
• Auto-MDI/MDIX: automatically adjusts for straight-through or crossover cables on all ports
Performance
• Half-/full-duplex auto-negotiating capability on every port: doubles the throughput of every port
Quality of Service (QoS)
• Traffic prioritization (IEEE 802.1p): allows real-time traffic classification witheight priority levels mapped to four queues
Layer 2 switching
• VLAN support and tagging: supports up to 64 port-based VLANs and dynamic configuration of IEEE 802.1Q VLAN tagging, providing security between workgroups
Resiliency and high availability
• IEEE 802.1D Spanning Tree Protocol (STP) and IEEE 802.1W Rapid Spanning Tree Protocol (RSTP): provides redundant links while preventing network loops; available only with v2 switch models
Security
• Secure Sockets Layer (SSL): encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch
Ease of use
• Locator LED (switch): allows users to set the locator LED on a specific switch to either turn on, blink, or turn off; simplifies troubleshooting by making it easy to locate a particular switch within a rack of similar switches
