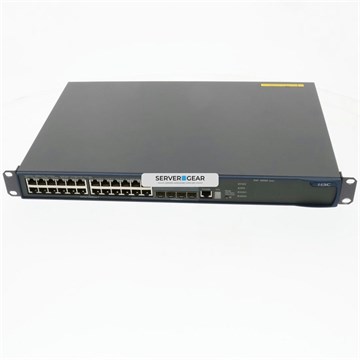

JD369A Переключатель HP 5500-24G SI Switch JD369A (HP)
JD369A Переключатель HP 5500-24G SI Switch JD369A (HP)
Краткое описание: HP JD369A - HP 5500-24G SI Switch - Same Day Express Shipping offered Worldwide
brand_ice: HP
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Colour of product: Grey
LED indicators: Yes
Safety: UL, EN, IEC, CAN/CSA, FDA, CFR, ROHS
Certification: FCC, VCCI, EN, CISPR 22, ICES, ANSI, ETSI, AS/NZS, EMC
Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
MIB support: MIB II, RIPv2, SNMPv2, PV6-TCP, IPV6-UDP, ICMPv6, MPD, RMON, Ping
Basic switching RJ-45 Ethernet ports quantity: 24
SFP/SFP+ slots quantity: 4
SFP module slots quantity: 4
Console port: RJ-45
Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: Yes
Copper ethernet cabling technology: 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
Port mirroring: Yes
IP routing: Yes
Full duplex: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
Link aggregation: Yes
VLAN support: Yes
MAC address table: 16000 entries
Supported data transfer rates: 10/100 Mbit/s
Switching capacity: 144 Gbit/s
Throughput: 107.2 mpps
Maximum data transfer rate: 1 Gbit/s
Jumbo frames support: Yes
Packet buffer memory: 2 MB
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes
Static port security: Yes
Security algorithms: 802.1x RADIUS, SSH
Multicast support: Yes
Management protocols: LLDP, STP, SNMPv1/v2c/v3, NTPv3, RMON, SSHv1/SSHv2
Supported network protocols: FTP, DNS, UDP, ARP, GARP, MTU, MLD/MLDv2, DLDP, RRPP, IRF
Memory type: SDRAM
Internal memory: 128 MB
Flash memory: 16 MB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 80 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 273 BTU/h
Width: 440 mm
Depth: 300 mm
Height: 43.6 mm
Weight: 4.5 kg
User guide: Yes
Manual: Yes
Latency: 2.6 µs
Connectivity technology: Wired
Networking features: Gigabit Ethernet
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Power LED: Yes
brand_ice: HP
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Colour of product: Grey
LED indicators: Yes
Safety: UL, EN, IEC, CAN/CSA, FDA, CFR, ROHS
Certification: FCC, VCCI, EN, CISPR 22, ICES, ANSI, ETSI, AS/NZS, EMC
Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes
MIB support: MIB II, RIPv2, SNMPv2, PV6-TCP, IPV6-UDP, ICMPv6, MPD, RMON, Ping
Basic switching RJ-45 Ethernet ports quantity: 24
SFP/SFP+ slots quantity: 4
SFP module slots quantity: 4
Console port: RJ-45
Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: Yes
Copper ethernet cabling technology: 1000BASE-T, 1000BASE-TX, 100BASE-T, 100BASE-TX, 10BASE-T
Port mirroring: Yes
IP routing: Yes
Full duplex: Yes
Ethernet LAN data rates: 10,100,1000 Mbit/s
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
Link aggregation: Yes
VLAN support: Yes
MAC address table: 16000 entries
Supported data transfer rates: 10/100 Mbit/s
Switching capacity: 144 Gbit/s
Throughput: 107.2 mpps
Maximum data transfer rate: 1 Gbit/s
Jumbo frames support: Yes
Packet buffer memory: 2 MB
Access Control List (ACL): Yes
IGMP snooping: Yes
MAC address filtering: Yes
Static port security: Yes
Security algorithms: 802.1x RADIUS, SSH
Multicast support: Yes
Management protocols: LLDP, STP, SNMPv1/v2c/v3, NTPv3, RMON, SSHv1/SSHv2
Supported network protocols: FTP, DNS, UDP, ARP, GARP, MTU, MLD/MLDv2, DLDP, RRPP, IRF
Memory type: SDRAM
Internal memory: 128 MB
Flash memory: 16 MB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 80 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 273 BTU/h
Width: 440 mm
Depth: 300 mm
Height: 43.6 mm
Weight: 4.5 kg
User guide: Yes
Manual: Yes
Latency: 2.6 µs
Connectivity technology: Wired
Networking features: Gigabit Ethernet
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
Power LED: Yes
HPE A 5500-24G SI. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 144 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE.... Rack mounting, Form factor: 1U
HP A5500 SI Switch Series
These Gigabit Ethernet switches deliver quad-speed performance 10/100/1000 and 10 Gigabit Ethernet, auto-voice VLAN, and quality of service (QoS). As a result, they are ideal for enterprise organizations seeking to build a secure, convergence-enhanced campus network. Robust IPv6 support and 10 Gigabit Ethernet uplinks future-proof an enterprise network against obsolescence. Resilient Ring Protection Protocol (RRPP), Smart Link, and Intelligent Resilient Framework (IRF) deliver 50 ms switchover and carrier-class reliability.
Key features
- Managed Layer 2 and Layer 3 GbE connectivity;
- High performance;
- Enterprise-class security features;
- Application convergence capable;
- Easy to use and manage.
HP A5500 SI Switch Series
These Gigabit Ethernet switches deliver quad-speed performance 10/100/1000 and 10 Gigabit Ethernet, auto-voice VLAN, and quality of service (QoS). As a result, they are ideal for enterprise organizations seeking to build a secure, convergence-enhanced campus network. Robust IPv6 support and 10 Gigabit Ethernet uplinks future-proof an enterprise network against obsolescence. Resilient Ring Protection Protocol (RRPP), Smart Link, and Intelligent Resilient Framework (IRF) deliver 50 ms switchover and carrier-class reliability.
Key features
- Managed Layer 2 and Layer 3 GbE connectivity;
- High performance;
- Enterprise-class security features;
- Application convergence capable;
- Easy to use and manage.
