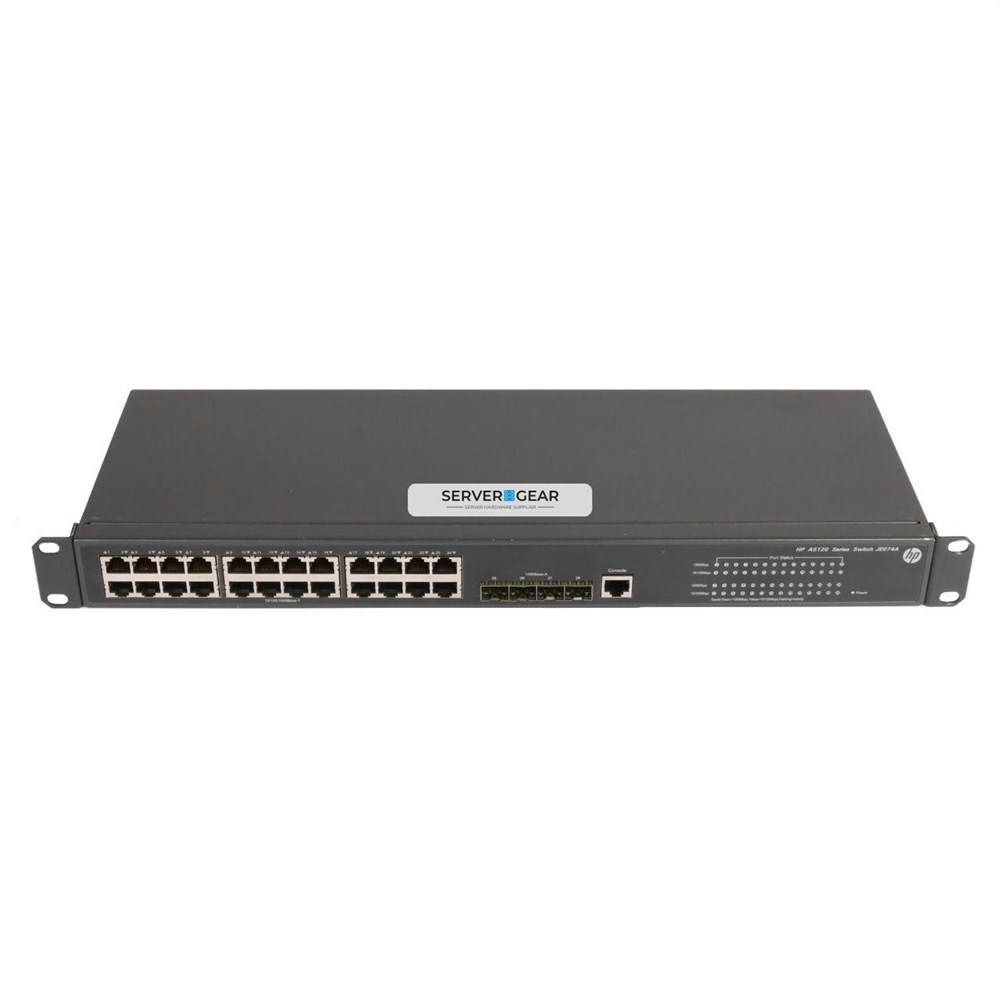

JE074A Переключатель HPE 5120-24G SI Switch JE074A (HP)
JE074A Переключатель HPE 5120-24G SI Switch JE074A (HP)
Краткое описание: HP JE074A - HPE 5120-24G SI Switch - Same Day Express Shipping offered Worldwide
brand_ice: HP
Co2 Savings: 343.78
Rack mounting: Yes
Stackable: Yes
Colour of product: Grey
LED indicators: Yes
Safety: UL, IEC, EN, CAN/CSA, RoHS
Certification: FCC, VCCI, CISPR, ANSI
Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Basic switching RJ-45 Ethernet ports quantity: 29
Gigabit Ethernet (copper) ports quantity: 24
SFP/SFP+ slots quantity: 4
SFP module slots quantity: 4
Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support: No
Full duplex: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
VLAN support: Yes
MAC address table: 8000 entries
Supported data transfer rates: 10/100/1000Mbps
Switching capacity: 56 Gbit/s
Throughput: 41.7 Mpps
Maximum data transfer rate: 1 Gbit/s
Packet buffer memory: 0.5 MB
Management protocols: SNMP, IMC
Supported network protocols: LLDP
Internal memory: 128 MB
Flash memory: 128 MB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 31.5 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 108 BTU/h
Width: 439.4 mm
Depth: 160 mm
Height: 43.7 mm
Weight: 3 kg
Latency: 1000Mb < 3 µs
brand_ice: HP
Co2 Savings: 343.78
Rack mounting: Yes
Stackable: Yes
Colour of product: Grey
LED indicators: Yes
Safety: UL, IEC, EN, CAN/CSA, RoHS
Certification: FCC, VCCI, CISPR, ANSI
Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Basic switching RJ-45 Ethernet ports quantity: 29
Gigabit Ethernet (copper) ports quantity: 24
SFP/SFP+ slots quantity: 4
SFP module slots quantity: 4
Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
10G support: No
Full duplex: Yes
Spanning tree protocol: Yes
Auto MDI/MDI-X: Yes
Flow control support: Yes
VLAN support: Yes
MAC address table: 8000 entries
Supported data transfer rates: 10/100/1000Mbps
Switching capacity: 56 Gbit/s
Throughput: 41.7 Mpps
Maximum data transfer rate: 1 Gbit/s
Packet buffer memory: 0.5 MB
Management protocols: SNMP, IMC
Supported network protocols: LLDP
Internal memory: 128 MB
Flash memory: 128 MB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 31.5 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 0 - 45 °C
Operating relative humidity (H-H): 10 - 90%
Heat dissipation: 108 BTU/h
Width: 439.4 mm
Depth: 160 mm
Height: 43.7 mm
Weight: 3 kg
Latency: 1000Mb < 3 µs
Hewlett Packard Enterprise A 5120-24G. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports quantity: 29. Full duplex. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... Rack mounting
Overview The HP 5120 SI Switch Series comprises intelligent, fully managed Gigabit Ethernet switches that provide high performance, high port density, and simplified installation to improve the value of your network infrastructure investment. The 5120 SI series is enhanced for the access layer in enterprise networks that require Gigabit Ethernet to the desktop or at the distribution layer in metropolitan area networks (MANs). Wire-speed forwarding delivers more effective throughput and the bandwidth necessary for mission-critical data and high-speed communications. As part of their comprehensive security control, 5120 SI switches employ 802.1X authentication to identify users who attempt to access the network. These switches are highly reliable, providing redundancy while eliminating loops in the network. They also offer a range of management protocols to simplify network administration. Features Quality of Service (QoS) Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic Management Friendly port names: allow assignment of descriptive names to ports Connectivity Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports Performance Nonblocking architecture: up to 104 Gbps nonblocking switching fabric provides wire-speed switching with up to 77.4 million pps throughput Resiliency and high availability Separate data and control paths: increases security and performance Layer 2 switching 8K MAC address table: provides access to many Layer 2 devices Layer 3 services Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses
Overview The HP 5120 SI Switch Series comprises intelligent, fully managed Gigabit Ethernet switches that provide high performance, high port density, and simplified installation to improve the value of your network infrastructure investment. The 5120 SI series is enhanced for the access layer in enterprise networks that require Gigabit Ethernet to the desktop or at the distribution layer in metropolitan area networks (MANs). Wire-speed forwarding delivers more effective throughput and the bandwidth necessary for mission-critical data and high-speed communications. As part of their comprehensive security control, 5120 SI switches employ 802.1X authentication to identify users who attempt to access the network. These switches are highly reliable, providing redundancy while eliminating loops in the network. They also offer a range of management protocols to simplify network administration. Features Quality of Service (QoS) Broadcast control: allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic Management Friendly port names: allow assignment of descriptive names to ports Connectivity Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports Performance Nonblocking architecture: up to 104 Gbps nonblocking switching fabric provides wire-speed switching with up to 77.4 million pps throughput Resiliency and high availability Separate data and control paths: increases security and performance Layer 2 switching 8K MAC address table: provides access to many Layer 2 devices Layer 3 services Address Resolution Protocol (ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses
