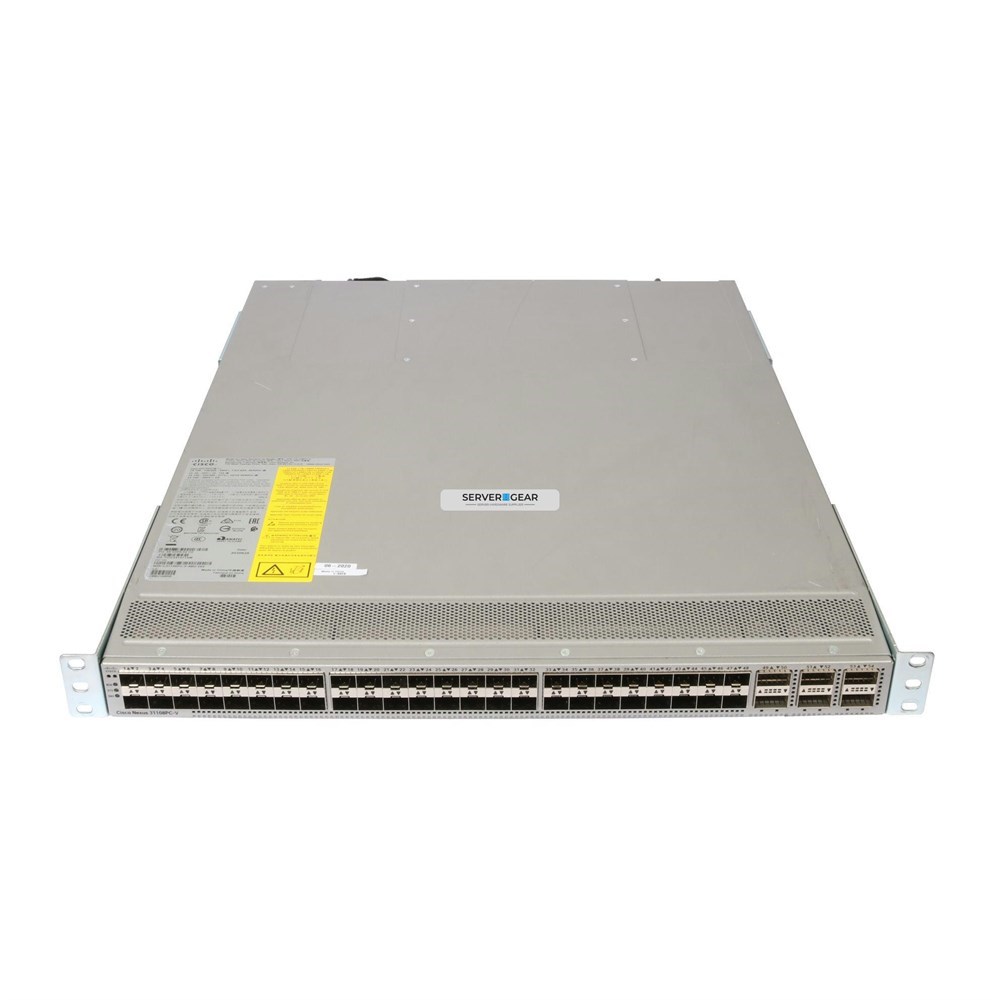

N3K-C31108PC-V Переключатель Nexus 31108-VXLAN, 48 x SFP+ and 6C/6Q QSFP ports N3K-C31108PC-V (CISCO)
N3K-C31108PC-V Переключатель Nexus 31108-VXLAN, 48 x SFP+ and 6C/6Q QSFP ports N3K-C31108PC-V (CISCO)
Краткое описание: CISCO N3K-C31108PC-V - Nexus 31108-VXLAN, 48 x SFP+ and 6C/6Q QSFP ports - Same Day Express Shipping offered Worldwide
brand_ice: CISCO
Co2 Savings: 343.78
Rack mounting: Yes
Form factor: 1U
Colour of product: Black, Grey
Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
MIB support: Yes
Installed SFP+ modules quantity: 48
SFP+ module slots quantity: 48
Fiber ports quantity: 54
Fiber optic connector: QSFP28, SFP+
Console port: RS-232
QSFP28 ports quantity: 6
USB 2.0 ports quantity: 1
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bm
10G support: Yes
VLAN support: Yes
Switching optical modules type: 100 Gigabit Ethernet
Fiber type: Multi-mode
MAC address table: 288000 entries
Switching capacity: 2160 Gbit/s
Jumbo frames support: Yes
Jumbo frames: 9216
Access Control List (ACL): Yes
Access Control List (ACL) egress: 1000
Access Control List (ACL) ingress: 16000
MAC address filtering: Yes
Security algorithms: SNMP
Multicast support: Yes
Management protocols: SNMP
Internal memory: 16 MB
Flash memory: 64000 MB
Buffer size: 16000 KB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 150 W
Power consumption (max): 360 W
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 1228 BTU/h
Width: 439 mm
Depth: 566 mm
Height: 44 mm
Weight: 9.7 kg
Harmonized System (HS) code: 85176990
brand_ice: CISCO
Co2 Savings: 343.78
Rack mounting: Yes
Form factor: 1U
Colour of product: Black, Grey
Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
MIB support: Yes
Installed SFP+ modules quantity: 48
SFP+ module slots quantity: 48
Fiber ports quantity: 54
Fiber optic connector: QSFP28, SFP+
Console port: RS-232
QSFP28 ports quantity: 6
USB 2.0 ports quantity: 1
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bm
10G support: Yes
VLAN support: Yes
Switching optical modules type: 100 Gigabit Ethernet
Fiber type: Multi-mode
MAC address table: 288000 entries
Switching capacity: 2160 Gbit/s
Jumbo frames support: Yes
Jumbo frames: 9216
Access Control List (ACL): Yes
Access Control List (ACL) egress: 1000
Access Control List (ACL) ingress: 16000
MAC address filtering: Yes
Security algorithms: SNMP
Multicast support: Yes
Management protocols: SNMP
Internal memory: 16 MB
Flash memory: 64000 MB
Buffer size: 16000 KB
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (typical): 150 W
Power consumption (max): 360 W
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 85%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3000 m
Heat dissipation: 1228 BTU/h
Width: 439 mm
Depth: 566 mm
Height: 44 mm
Weight: 9.7 kg
Harmonized System (HS) code: 85176990
Cisco Nexus 31108PC-V. Switch type: Managed, Switch layer: L2/L3. Switching optical modules type: 100 Gigabit Ethernet. USB 2.0 ports quantity: 1, Console port: RS-232. MAC address table: 288000 entries, Switching capacity: 2160 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE.... Rack mounting, Form factor: 1U
Get High-Density, 1/10/40/100-Gbps Switching
Get high performance, advanced programmability, and wire-rate Layer 2 and 3 switching based on the Cisco NX-OS operating system. The 31108PC-V SFP+ is a 48-port 1/10-Gbps switch with 40/100-Gbps uplinks. It supports DevOps toolsets, and offers mobility and scale for service and cloud providers. This compact, top-of-rack (ToR) switch is ideal for building cost-effective, power-efficient data centers.
High Performance and Flexibility
- 48 downlink ports support 1G and 10G
- 6 flexible uplink ports support 40G, 100G, 4x10G with breakout cables, and 1x10G with QSA adapter
- Up to 2.5 terabits per second (Tbps) and up to 1.4 billion packets per second (Bpps)
- The design is optimized for ultra-low nominal latency (approximately 650 nanoseconds)
- Border Gateway Protocol Ethernet VPN (BGP EVPN) control plane offers scalable multitenancy and host mobility
Feature-Rich
- Native line-rate virtual extensible LAN (VXLAN) routing supports mobility and tenant isolation
- Integrates with Cisco Cloud Network Manager and XML management tools
- Includes scalable and cost-effective network traffic monitoring with Cisco Nexus Data Broker
Simple Operations
- Touchless boot-up with Power-On Auto-Provisioning (POAP)
- Configuration management DevOps tools support Puppet, Chef, and Ansible
- Advance programmability functions include Cisco NX-API command-line interface (CLI), NX-API representational state transfer (REST), Cisco Embedded Event Manager, and Python scripting
Get High-Density, 1/10/40/100-Gbps Switching
Get high performance, advanced programmability, and wire-rate Layer 2 and 3 switching based on the Cisco NX-OS operating system. The 31108PC-V SFP+ is a 48-port 1/10-Gbps switch with 40/100-Gbps uplinks. It supports DevOps toolsets, and offers mobility and scale for service and cloud providers. This compact, top-of-rack (ToR) switch is ideal for building cost-effective, power-efficient data centers.
High Performance and Flexibility
- 48 downlink ports support 1G and 10G
- 6 flexible uplink ports support 40G, 100G, 4x10G with breakout cables, and 1x10G with QSA adapter
- Up to 2.5 terabits per second (Tbps) and up to 1.4 billion packets per second (Bpps)
- The design is optimized for ultra-low nominal latency (approximately 650 nanoseconds)
- Border Gateway Protocol Ethernet VPN (BGP EVPN) control plane offers scalable multitenancy and host mobility
Feature-Rich
- Native line-rate virtual extensible LAN (VXLAN) routing supports mobility and tenant isolation
- Integrates with Cisco Cloud Network Manager and XML management tools
- Includes scalable and cost-effective network traffic monitoring with Cisco Nexus Data Broker
Simple Operations
- Touchless boot-up with Power-On Auto-Provisioning (POAP)
- Configuration management DevOps tools support Puppet, Chef, and Ansible
- Advance programmability functions include Cisco NX-API command-line interface (CLI), NX-API representational state transfer (REST), Cisco Embedded Event Manager, and Python scripting
