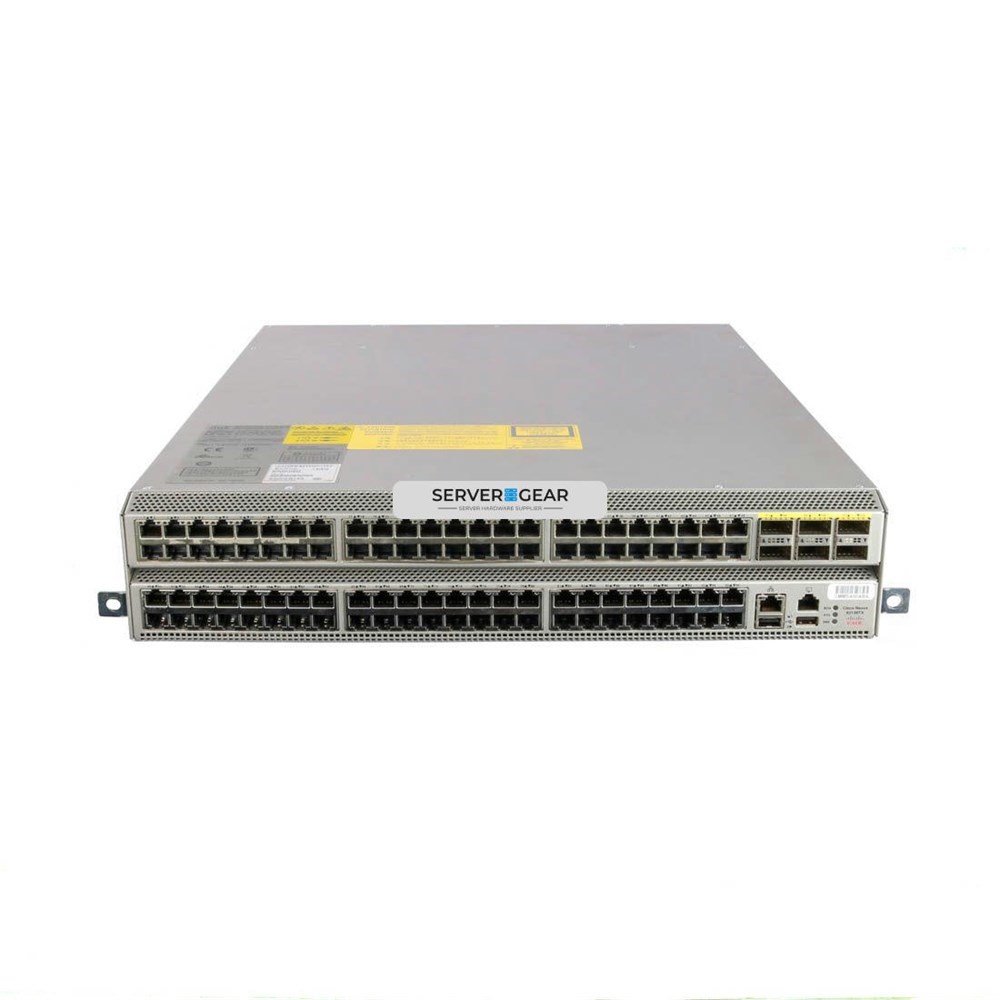

N9K-C93120TX Переключатель Nexus 9300 with 96p 1/10G-T and 6p 40G QSFP N9K-C93120TX (CISCO)
N9K-C93120TX Переключатель Nexus 9300 with 96p 1/10G-T and 6p 40G QSFP N9K-C93120TX (CISCO)
Краткое описание: CISCO N9K-C93120TX - Nexus 9300 with 96p 1/10G-T and 6p 40G QSFP - Same Day Express Shipping offered Worldwide
brand_ice: CISCO
Rack mounting: Yes
Form factor: 2U
Colour of product: Grey
LED indicators: Yes
Number of fans: 2 fan(s)
Certification: UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943
Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 96
Basic switching RJ-45 Ethernet ports type: 10 GbE Copper
QSFP+ module slots quantity: 6
Fiber optic connector: QSFP+
10G support: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Number of VLANs: 4096
Switching optical modules type: 40 Gigabit Ethernet
MAC address table: 96000 entries
Switching capacity: 2400 Gbit/s
Forwarding rate: 750 Mpps
Access Control List (ACL): Yes
Access Control List (ACL) egress: 1000
Access Control List (ACL) ingress: 4000
IGMP snooping: Yes
Multicast support: Yes
Routing protocols: HSRP
Built-in processor: Yes
Processor frequency: 2500 MHz
Internal memory: 16000 MB
Flash memory: 64000 MB
Redundant power supply (RPS) support: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC input voltage: 72 V
Power consumption (typical): 542 W
Power consumption (max): 948 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 4000 m
Width: 445 mm
Depth: 571 mm
Height: 89 mm
brand_ice: CISCO
Rack mounting: Yes
Form factor: 2U
Colour of product: Grey
LED indicators: Yes
Number of fans: 2 fan(s)
Certification: UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, GB4943
Switch type: Managed
Switch layer: L2/L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 96
Basic switching RJ-45 Ethernet ports type: 10 GbE Copper
QSFP+ module slots quantity: 6
Fiber optic connector: QSFP+
10G support: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Number of VLANs: 4096
Switching optical modules type: 40 Gigabit Ethernet
MAC address table: 96000 entries
Switching capacity: 2400 Gbit/s
Forwarding rate: 750 Mpps
Access Control List (ACL): Yes
Access Control List (ACL) egress: 1000
Access Control List (ACL) ingress: 4000
IGMP snooping: Yes
Multicast support: Yes
Routing protocols: HSRP
Built-in processor: Yes
Processor frequency: 2500 MHz
Internal memory: 16000 MB
Flash memory: 64000 MB
Redundant power supply (RPS) support: Yes
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC input voltage: 72 V
Power consumption (typical): 542 W
Power consumption (max): 948 W
Power over Ethernet (PoE): No
Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 5 - 95%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 4000 m
Width: 445 mm
Depth: 571 mm
Height: 89 mm
Cisco Nexus 93120TX. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 96. Switching optical modules type: 40 Gigabit Ethernet. MAC address table: 96000 entries, Switching capacity: 2400 Gbit/s. DC input voltage: 72 V. Rack mounting, Form factor: 2U
Organizations everywhere recognize that changing application environments are creating new demands for the IT infrastructure that supports them. Application workloads are deployed across a mix of virtualized and nonvirtualized server and storage infrastructure, requiring a network infrastructure that provides consistent connectivity, security, and visibility across a range of bare-metal, virtualized, and cloud computing environments:
- Application instances are created dynamically. As a result, the provisioning, modification, and removal of application network connectivity needs to be dynamic as well.
- Business units’ demand accelerated application deployments. IT departments have to provide shared IT infrastructure to address time-to-market needs and to increase their return on investment (ROI).
- With organizations deploying a mix of custom, open-source, and off-the-shelf commercial applications, IT departments must manage both security and quality of service (QoS) for environments that support multitenancy.
- Applications have been transitioning over time to a less monolithic, scale-out, multinode model. IT infrastructure that supports this model must scale with the speed of business and support both 10 and 40 Gigabit Ethernet connectivity.
The Cisco Nexus® 9000 Series Switches include both modular and fixed-port switches that are designed to overcome these challenges with a flexible, agile, low-cost, application-centric infrastructure.
The Cisco Nexus 9300 platform consists of fixed-port switches designed for top-of-rack (ToR) and middle-of-row (MoR) deployment in data centers that support enterprise applications, service provider hosting, and cloud computing environments. They are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 terabits per second (Tbps) of internal bandwidth.
Organizations everywhere recognize that changing application environments are creating new demands for the IT infrastructure that supports them. Application workloads are deployed across a mix of virtualized and nonvirtualized server and storage infrastructure, requiring a network infrastructure that provides consistent connectivity, security, and visibility across a range of bare-metal, virtualized, and cloud computing environments:
- Application instances are created dynamically. As a result, the provisioning, modification, and removal of application network connectivity needs to be dynamic as well.
- Business units’ demand accelerated application deployments. IT departments have to provide shared IT infrastructure to address time-to-market needs and to increase their return on investment (ROI).
- With organizations deploying a mix of custom, open-source, and off-the-shelf commercial applications, IT departments must manage both security and quality of service (QoS) for environments that support multitenancy.
- Applications have been transitioning over time to a less monolithic, scale-out, multinode model. IT infrastructure that supports this model must scale with the speed of business and support both 10 and 40 Gigabit Ethernet connectivity.
The Cisco Nexus® 9000 Series Switches include both modular and fixed-port switches that are designed to overcome these challenges with a flexible, agile, low-cost, application-centric infrastructure.
The Cisco Nexus 9300 platform consists of fixed-port switches designed for top-of-rack (ToR) and middle-of-row (MoR) deployment in data centers that support enterprise applications, service provider hosting, and cloud computing environments. They are Layer 2 and 3 nonblocking 10 and 40 Gigabit Ethernet switches with up to 2.56 terabits per second (Tbps) of internal bandwidth.
