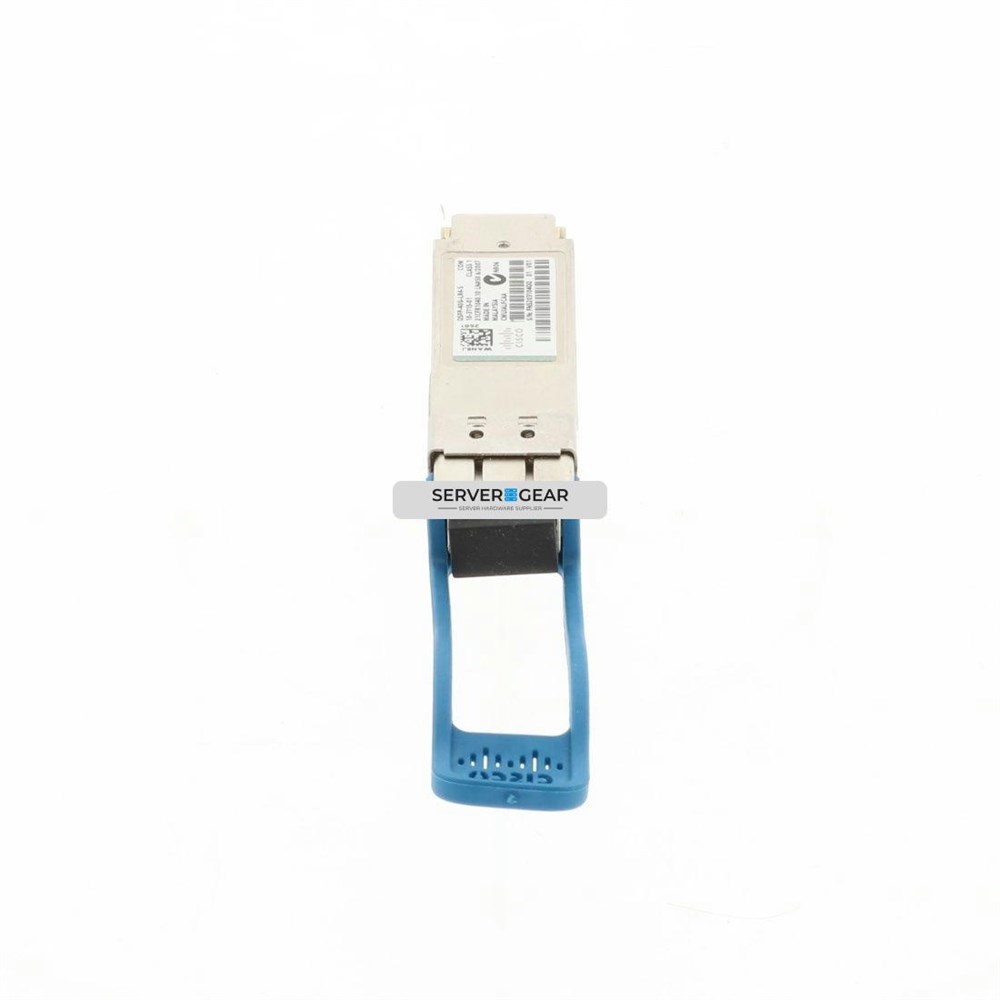

QSFP-40G-LR4-S Трансивер QSFP-40G-LR4-S (CISCO)
QSFP-40G-LR4-S Трансивер QSFP-40G-LR4-S (CISCO)
Краткое описание: 40GBASE-LR4 transceiver module, 1310 nm, SMF
brand_ice: CISCO
Co2 Savings: 0
SFP transceiver type: Fiber optic
Data transfer rate (max): 40 Gbp/s
Interface type: QSFP
Single-mode fiber (SMF) supported: Yes
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: LR
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Networking standards: IEEE 802.3ba
Auto MDI/MDI-X: Yes
Hot-Plug support: Yes
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 80%
Storage relative humidity (H-H): 10 - 85%
Number of products included: 1 pc(s)
brand_ice: CISCO
Co2 Savings: 0
SFP transceiver type: Fiber optic
Data transfer rate (max): 40 Gbp/s
Interface type: QSFP
Single-mode fiber (SMF) supported: Yes
Fiber optic connector: LC
Fiber cable diameters supported (core/cladding): 9/125 µm
SFP transceiver standard: LR
Maximum transfer distance: 10000 m
Wavelength: 1310 nm
Networking standards: IEEE 802.3ba
Auto MDI/MDI-X: Yes
Hot-Plug support: Yes
Operating temperature (T-T): 0 - 70 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 10 - 80%
Storage relative humidity (H-H): 10 - 85%
Number of products included: 1 pc(s)
Cisco QSFP-40G-LR4-S. SFP transceiver type: Fiber optic, Maximum data transfer rate: 40000 Mbit/s, Interface type: QSFP. Number of products included: 1 pc(s)
The Cisco 40GBASE-LR4 QSFP module supports link lengths of up to 10 kilometer over a standard pair of G.652 single-mode fiber with duplex LC connectors. The QSFP-40G-LR4-S module supports 40GBase Ethernet rate only. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed in the device.
The Cisco 40GBASE-LR4 QSFP module supports link lengths of up to 10 kilometer over a standard pair of G.652 single-mode fiber with duplex LC connectors. The QSFP-40G-LR4-S module supports 40GBase Ethernet rate only. The 40 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed in the device.
