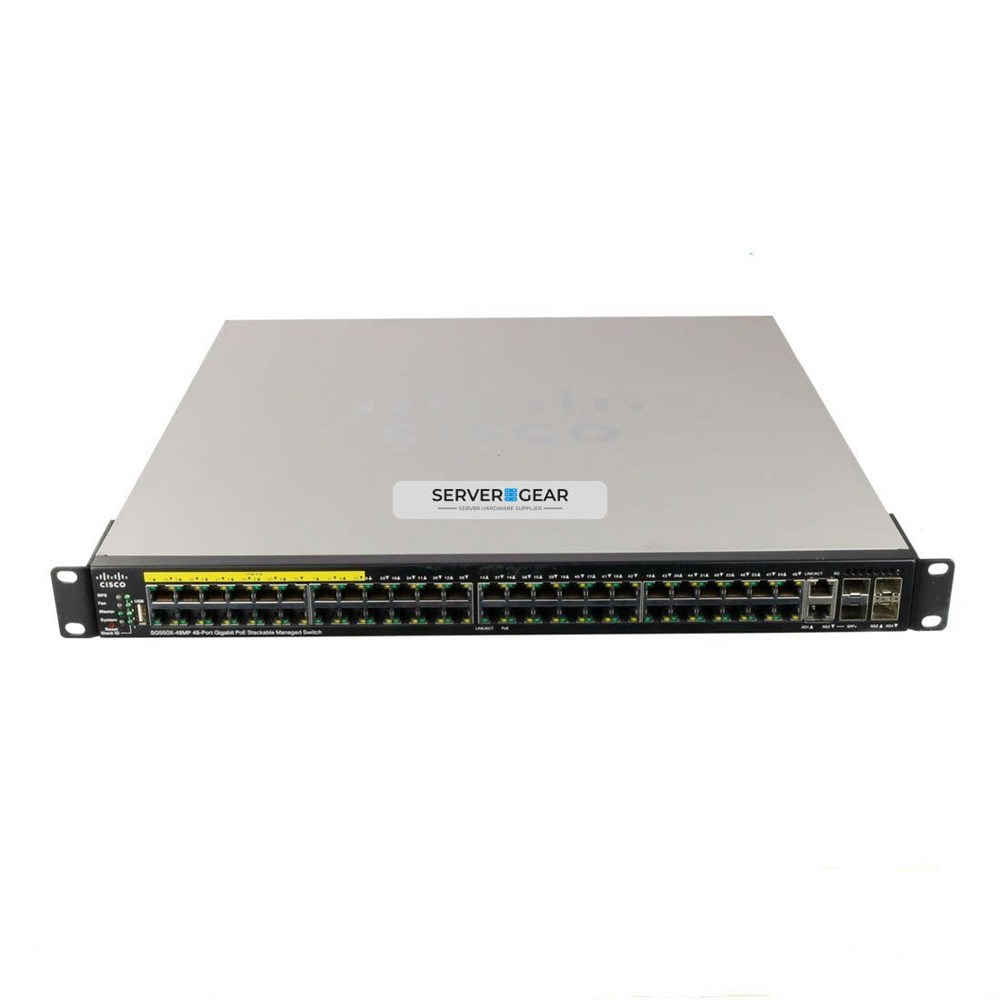

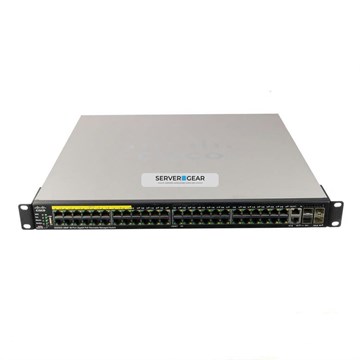

SG550X-48MP-K9-EU Переключатель SG550X-48MP-K9-EU (CISCO)

Краткое описание: L3, managed, 48 x 10/100/1000 & 2 x 10 GE combo & 2 x 10GE SFP+, rack-mountable, Max PoE

brand_ice: CISCO
Rack mounting: Yes
Stackable: Yes
Form factor: 1U
Colour of product: Black, Grey
Reset button: Yes
LED indicators: Yes
Certification: UL (UL 60950), CSA (CSA 22.2), CE, FCC 15 (CFR 47) A
Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
ARP inspection: Yes
System event log: No
Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: 1 GbE Copper
Gigabit Ethernet (copper) ports quantity: 48
Installed SFP+ modules quantity: 2
Combo SFP ports quantity: 2
SFP+ module slots quantity: 2
Console port: RJ-45
Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support: Yes
Cable types supported: Cat5, Cat5e, Cat6a
Port mirroring: Yes
Cable length detection: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Head-of-line (HOL) blocking: Yes
Flow control support: Yes
Link aggregation: Yes
VLAN support: Yes
Virtual LAN features: Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN
Number of VLANs: 4094
MAC address table: 16000 entries
Switching capacity: 176 Gbit/s
Forwarding rate: 130.94 Mpps
Number of queues: 8
Number of static routes: 7000
Number of IP interfaces: 256
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 3 MB
DHCP features: DHCP server
Access Control List (ACL): Yes
IGMP snooping: Yes
BPDU filtering/protection: Yes
Loop protection: Yes
IP-MAC-Port binding: Yes
Authentication: Guest VLAN, Port-based authentication
SSH/SSL support: Yes
Security algorithms: 802.1x RADIUS, HTTPS, SSH, SSL/TLS
Multicast support: Yes
Management protocols: SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Physical stacking (units): 8
Built-in processor: Yes
Processor frequency: 800 MHz
Internal memory: 512 MB
Flash memory: 256 MB
Compatible operating systems: Microsoft Windows, Linux, Mac OS X
Firmware upgradeable: Yes
Mean time between failures (MTBF): 163264 h
Power supply included: Yes
Redundant power supply (RPS) support: Yes
AC input voltage: 100 - 240 V
AC input frequency: 47/63 Hz
Power consumption (max): 893.1 W
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 60 W
Total Power over Ethernet (PoE) budget: 740 W
Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 10 - 90%
Heat dissipation: 3047.38 BTU/h
Width: 440 mm
Depth: 450 mm
Height: 44 mm
Weight: 6.69 kg
Cables included: AC, Serial
Quick start guide: Yes
Resource CD: Yes
Rack mount kit: Yes
Harmonized System (HS) code: 85176990
