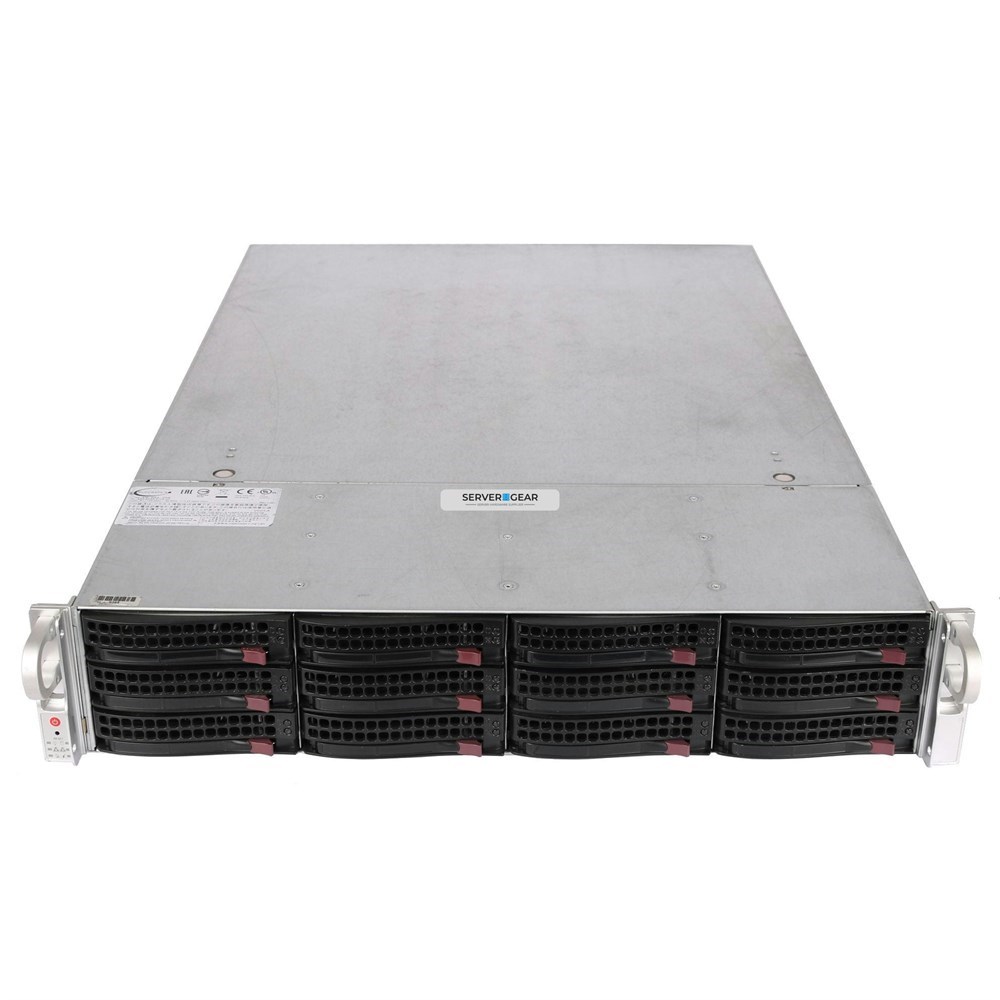

SSG-6028R-E1CR12N Сервер SuperStorage SSG-6028R X10DRI-T4+ 2U 12x3.5 2x2.5 SSG-6028R-E1CR12N (SUPERMICRO)
SSG-6028R-E1CR12N Сервер SuperStorage SSG-6028R X10DRI-T4+ 2U 12x3.5 2x2.5 SSG-6028R-E1CR12N (SUPERMICRO)
Краткое описание: SUPERMICRO SSG-6028R-E1CR12N - SuperStorage SSG-6028R X10DRI-T4+ 2U 12x3.5 2x2.5 - Same Day Express Shipping offered Worldwide
brand_ice: SUPERMICRO
Co2 Savings: 544.06
Chassis type: Rack (2U)
Colour of product: Black
Redundant fans support: Yes
Fan diameter: 8 cm
Number of fans: 3 fan(s)
Motherboard chipset: Intel® C612
Processor socket: LGA 2011 (Socket R)
Processor family: Intel
Number of processors supported: 2
System bus rate: 9.6 GT/s
System bus type: QuickPath Interconnect (QPI)
Maximum cache: 45 MB
Compatible processor series: Intel® Xeon®
Number of DIMM slots: 24
Supported memory types: DDR4-SDRAM
Maximum internal memory: 1536 GB
Maximum RDIMM memory: 512 GB
Memory form factor: 288-pin DIMM
Memory bus: 72 bit
Memory mirroring supported: Yes
ECC: Yes
Number of storage drives supported: 12
Hot-swap HDD bays: Yes
Storage drive sizes supported: 3.5"
Supported storage drive interfaces: Serial ATA III
RAID levels: 0,1,5,10
On-board graphics card model: Aspeed AST2400
Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 100,1000,10000 Mbit/s
Copper ethernet cabling technology: 1000BASE-T,100BASE-TX,10GBASE-T
LAN controller: Intel® X540, Realtek RTL8201N
USB 3.0 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports quantity: 4
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1
PCI Express x8 slots: 3
PCI Express x16 slots: 2
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 1.2
Power supply: 920 W
Redundant power supply (RPS) support: Yes
Number of redundant power supplies installed: 1
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC output current (+5 V): 4 A
DC output current (+12 V): 75 A
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 8 - 90%
Storage temperature (T-T): -40 - 70 °C
Depth: 648 mm
Height: 89 mm
Width: 437 mm
Sustainability certificates: RoHS
Intelligent Platform Management Interface (IPMI) support: Yes
BIOS type: EEPROM
BIOS memory size: 128 Mbit
BIOS features: APM 1.2,Plug & Play,UEFI
brand_ice: SUPERMICRO
Co2 Savings: 544.06
Chassis type: Rack (2U)
Colour of product: Black
Redundant fans support: Yes
Fan diameter: 8 cm
Number of fans: 3 fan(s)
Motherboard chipset: Intel® C612
Processor socket: LGA 2011 (Socket R)
Processor family: Intel
Number of processors supported: 2
System bus rate: 9.6 GT/s
System bus type: QuickPath Interconnect (QPI)
Maximum cache: 45 MB
Compatible processor series: Intel® Xeon®
Number of DIMM slots: 24
Supported memory types: DDR4-SDRAM
Maximum internal memory: 1536 GB
Maximum RDIMM memory: 512 GB
Memory form factor: 288-pin DIMM
Memory bus: 72 bit
Memory mirroring supported: Yes
ECC: Yes
Number of storage drives supported: 12
Hot-swap HDD bays: Yes
Storage drive sizes supported: 3.5"
Supported storage drive interfaces: Serial ATA III
RAID levels: 0,1,5,10
On-board graphics card model: Aspeed AST2400
Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 100,1000,10000 Mbit/s
Copper ethernet cabling technology: 1000BASE-T,100BASE-TX,10GBASE-T
LAN controller: Intel® X540, Realtek RTL8201N
USB 3.0 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports quantity: 4
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 1
Serial ports quantity: 1
PCI Express x8 slots: 3
PCI Express x16 slots: 2
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 1.2
Power supply: 920 W
Redundant power supply (RPS) support: Yes
Number of redundant power supplies installed: 1
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC output current (+5 V): 4 A
DC output current (+12 V): 75 A
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 8 - 90%
Storage temperature (T-T): -40 - 70 °C
Depth: 648 mm
Height: 89 mm
Width: 437 mm
Sustainability certificates: RoHS
Intelligent Platform Management Interface (IPMI) support: Yes
BIOS type: EEPROM
BIOS memory size: 128 Mbit
BIOS features: APM 1.2,Plug & Play,UEFI
Supermicro SuperServer 6028R-E1CR12N. Motherboard chipset: Intel® C612, Processor socket: LGA 2011 (Socket R), Processor family: Intel. Supported memory types: DDR4-SDRAM, Maximum internal memory: 1536 GB, Maximum RDIMM memory: 512 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial ATA III. On-board graphics adapter model: Aspeed AST2400. Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 100,1000,10000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T,100BASE-TX,10GBASE-T
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Supermicro's New Generation X10 Haswell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
