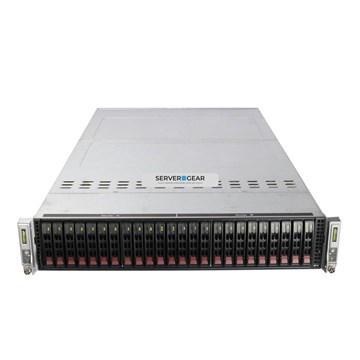

SYS-2028TP-DECTR Сервер SuperServer SYS-2028TP-DECTR X10DRT-PT 2U 24x2.5 SYS-2028TP-DECTR (SUPERMICRO)
SYS-2028TP-DECTR Сервер SuperServer SYS-2028TP-DECTR X10DRT-PT 2U 24x2.5 SYS-2028TP-DECTR (SUPERMICRO)
Краткое описание: SUPERMICRO SYS-2028TP-DECTR - SuperServer SYS-2028TP-DECTR X10DRT-PT 2U 24x2.5 - Same Day Express Shipping offered Worldwide
brand_ice: SUPERMICRO
Co2 Savings: 544.06
Chassis type: Rack (2U)
Colour of product: Black, Grey
LED indicators: Yes
Fan diameter: 8 cm
Number of fans: 4 fan(s)
Motherboard chipset: Intel® C612
Processor socket: LGA 2011 (Socket R)
Processor family: Intel
Number of processors supported: 4
System bus rate: 9.6 GT/s
Maximum cache: 55 MB
Compatible processor series: Intel® Xeon®
Intel Xeon series: E5-2600
Number of DIMM slots: 32
Supported memory types: DDR4-SDRAM
Maximum internal memory: 4.1 TB
Maximum RDIMM memory: 1.02 TB
Memory form factor: 288-pin DIMM
Memory voltage: 1.2 V
Memory bus: 72 bit
ECC: Yes
Number of storage drives supported: 24
Hot-swap HDD bays: Yes
Storage drive sizes supported: 2.5"
Supported storage drive interfaces: Serial Attached SCSI (SAS)-3
On-board graphics card model: Aspeed AST2400
Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
LAN controller: Intel® X540, Realtek RTL8201N
USB 3.0 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports quantity: 4
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 1
Number of SAS ports: 32
PCI Express x8 slots: 2
PCI Express x16 slots: 2
PCI slots: 2
Power supply: 1280 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 8 - 12 A
DC output current (+5 V): 4 A
DC output current (+12 V): 106.7 A
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 8 - 90%
Storage temperature (T-T): -40 - 70 °C
Depth: 730 mm
Height: 88 mm
Weight: 29.9 kg
Width: 438 mm
Sustainability certificates: RoHS
BIOS type: AMI
BIOS memory size: 16 Mbit
ACPI version: 2.0
BIOS features: APM 1.2, PCI 2.2, Plug & Play, SMBIOS 2.3, UEFI
brand_ice: SUPERMICRO
Co2 Savings: 544.06
Chassis type: Rack (2U)
Colour of product: Black, Grey
LED indicators: Yes
Fan diameter: 8 cm
Number of fans: 4 fan(s)
Motherboard chipset: Intel® C612
Processor socket: LGA 2011 (Socket R)
Processor family: Intel
Number of processors supported: 4
System bus rate: 9.6 GT/s
Maximum cache: 55 MB
Compatible processor series: Intel® Xeon®
Intel Xeon series: E5-2600
Number of DIMM slots: 32
Supported memory types: DDR4-SDRAM
Maximum internal memory: 4.1 TB
Maximum RDIMM memory: 1.02 TB
Memory form factor: 288-pin DIMM
Memory voltage: 1.2 V
Memory bus: 72 bit
ECC: Yes
Number of storage drives supported: 24
Hot-swap HDD bays: Yes
Storage drive sizes supported: 2.5"
Supported storage drive interfaces: Serial Attached SCSI (SAS)-3
On-board graphics card model: Aspeed AST2400
Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,10000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
LAN controller: Intel® X540, Realtek RTL8201N
USB 3.0 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports quantity: 4
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 1
Number of SAS ports: 32
PCI Express x8 slots: 2
PCI Express x16 slots: 2
PCI slots: 2
Power supply: 1280 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 8 - 12 A
DC output current (+5 V): 4 A
DC output current (+12 V): 106.7 A
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 8 - 90%
Storage temperature (T-T): -40 - 70 °C
Depth: 730 mm
Height: 88 mm
Weight: 29.9 kg
Width: 438 mm
Sustainability certificates: RoHS
BIOS type: AMI
BIOS memory size: 16 Mbit
ACPI version: 2.0
BIOS features: APM 1.2, PCI 2.2, Plug & Play, SMBIOS 2.3, UEFI
Supermicro 2028TP-DECTR. Motherboard chipset: Intel® C612, Processor socket: LGA 2011 (Socket R), Processor family: Intel. Supported memory types: DDR4-SDRAM, Maximum internal memory: 4.1 TB, Maximum RDIMM memory: 1.02 TB. Storage drive sizes supported: 2.5", Supported storage drive interfaces: Serial Attached SCSI (SAS)-3. On-board graphics card model: Aspeed AST2400. Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,10000 Mbit/s, Copper ethernet cabling technology: 10BASE-T, 10GBASE-T, 100BASE-TX, 1000BASE-T
Supermicro's X10 Broadwell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
Supermicro's X10 Broadwell DP SuperServer® offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.
