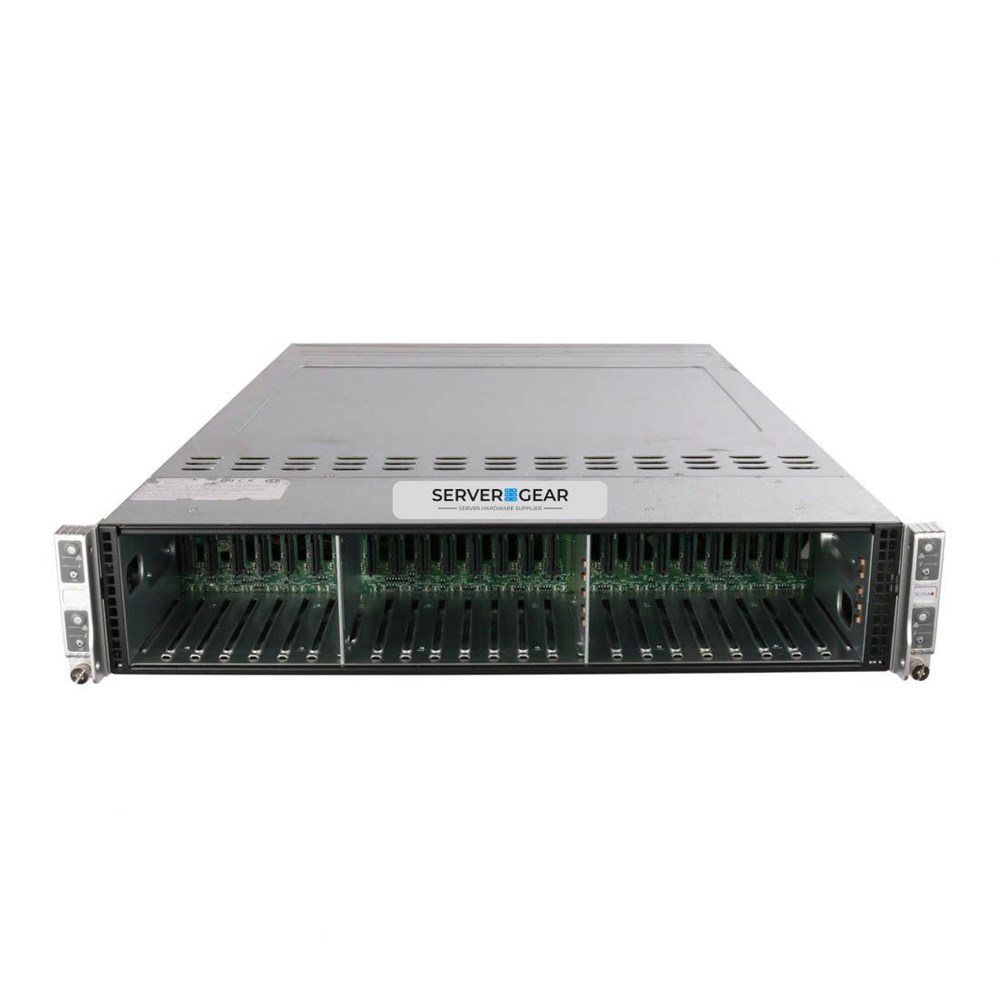

SYS-2028TR-HTR Сервер SYS-2028TR-HTR (SUPERMICRO)

Краткое описание: 2x LGA 2011, 8x 288-pin DIMM, Intel C612, 6x 2.5" Hot-swap SATA3, 1x PCI-E 3.0 x16, IPMI, 1600W

brand_ice: SUPERMICRO
Co2 Savings: 544.06
Chassis type: Rack (2U)
Colour of product: Black
LED indicators: HDD, Network, Power
On/off switch: Yes
Reset button: Yes
Fan diameter: 8 cm
Number of fans: 4 fan(s)
Built-in processor: No
Motherboard chipset: Intel® C612
Processor socket: LGA 2011 (Socket R)
Number of processors supported: 2
System bus rate: 9.6 GT/s
System bus type: QuickPath Interconnect (QPI)
Maximum cache: 55 MB
Compatible processor series: Intel® Xeon®
Intel Xeon series: E5-2600
Number of DIMM slots: 8
Supported memory types: DDR4-SDRAM
Supported DIMM module capacities: 1GB, 2GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128MB
Maximum internal memory: 1 TB
Maximum RDIMM memory: 256 GB
Supported RDIMM clock speeds: 1600,1866,2133,2400 MHz
Memory form factor: 288-pin DIMM
Memory voltage: 1.2 V
Memory bus: 72 bit
ECC: Yes
Number of storage drives supported: 6
Hot-swap HDD bays: Yes
Storage drive sizes supported: 2.5"
Supported storage drive types: HDD & SSD
Supported storage drive interfaces: Serial ATA III
RAID levels: 0, 1, 5, 10
On-board graphics card model: Aspeed AST2400
Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000 Mbit/s
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
LAN controller: Intel® I350, Realtek RTL8201N
USB 3.0 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports quantity: 2
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 1
Number of SATA III connectors: 8
PCI Express slots version: 3.0
PCI Express x16 slots: 1
Integrated BMC with IPMI: Yes
Power supply: 1600 W
Redundant power supply (RPS) support: Yes
Number of redundant power supplies installed: 1
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 7 - 11 A
DC output current (+12 V): 133 A
80 PLUS certification: 80 PLUS
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 8 - 90%
Storage temperature (T-T): -40 - 70 °C
Depth: 724 mm
Height: 88 mm
Weight: 24.7 kg
Width: 438 mm
Power supply dimensions (WxDxH): 76 x 336 x 40.4 mm
Sustainability certificates: RoHS
Intelligent Platform Management Interface (IPMI) support: Yes
BIOS type: AMI
BIOS memory size: 16 Mbit
ACPI version: 1.0 / 2.0
System Management BIOS (SMBIOS) version: 2.3
Plug and Play: Yes
BIOS features: APM 1.2, PCI 2.2, Plug & Play, SMBIOS 2.3, UEFI
Package width: 284.5 mm
Package depth: 1010.9 mm
Package height: 670.6 mm
Package weight: 38.6 kg
Harmonized System (HS) code: 84714100
