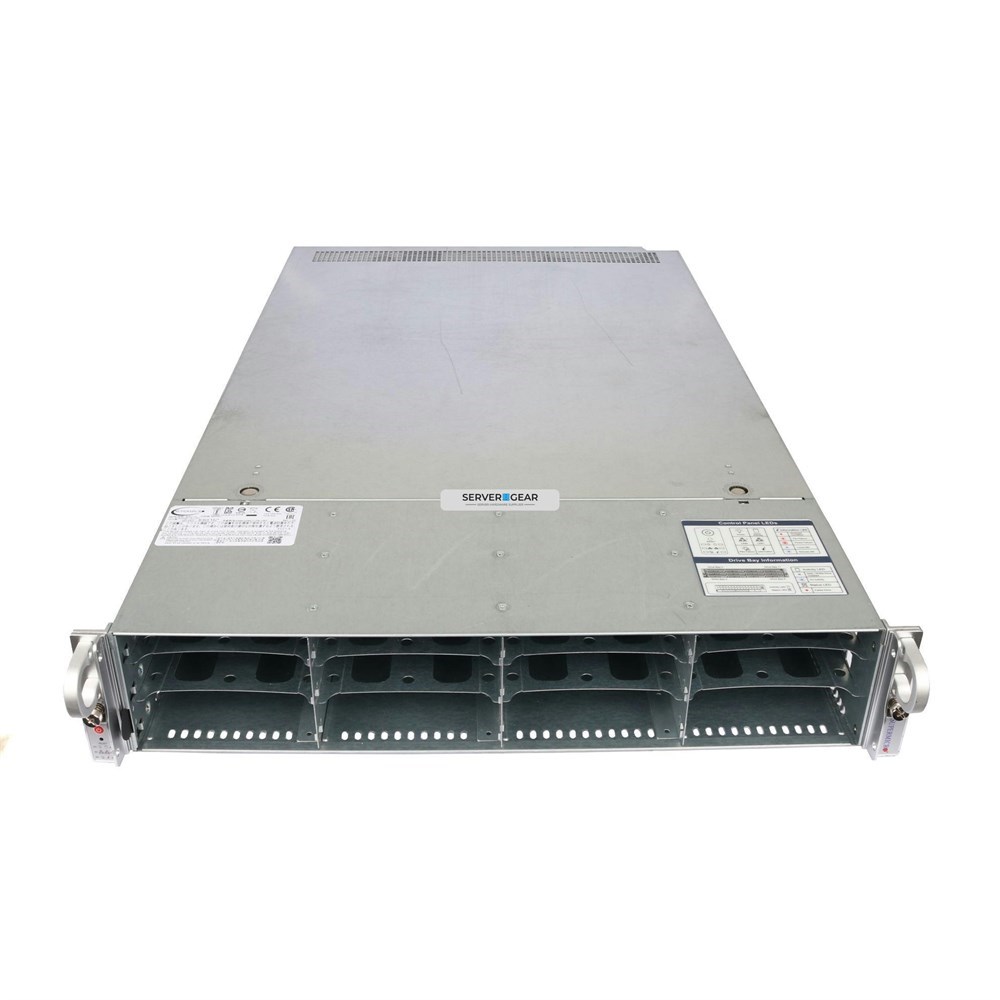

SYS-6029U-E1CR4 Сервер SYS-6029U-E1CR4 (SUPERMICRO)
SYS-6029U-E1CR4 Сервер SYS-6029U-E1CR4 (SUPERMICRO)
Краткое описание: SuperServer 6029U-E1CR4, Dual Socket P (LGA 3647), Intel C621, 24 x DDR4, 12 Hot-swap 3.5" SATA3, 4 x GbE LAN, 1000W Redundant PSU, 2U Rackmount
brand_ice: SUPERMICRO
Co2 Savings: 544.06
Chassis type: Rack (2U)
Colour of product: Black
LED indicators: Yes
On/off switch: Yes
Number of fans: 4 fan(s)
Built-in processor: No
Motherboard chipset: Intel® C621
Processor socket: LGA 3647 (Socket P)
Processor family: Intel® Xeon®
Number of processors supported: 2
System bus rate: 10.4 GT/s
Compatible processor series: Intel® Xeon®
Number of DIMM slots: 24
Supported memory types: DDR4-SDRAM
Maximum internal memory: 3.07 TB
Maximum RDIMM memory: 3.07 TB
Supported RDIMM clock speeds: 2133,2400,2666 MHz
Memory voltage: 1.2 V
ECC: Yes
Number of storage drives supported: 12
Hot-swap HDD bays: Yes
Number of 3.5" bays: 12
Storage drive sizes supported: 3.5"
Supported storage drive interfaces: Serial Attached SCSI (SAS)-3, Serial ATA III
RAID levels: 0, 1, 5, 10
On-board graphics card model: Aspeed AST2500
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
LAN controller: Intel® I350
USB 3.0 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports quantity: 5
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 2
Serial ports quantity: 1
Number of SAS ports: 12
PCI Express x8 (Gen 3.x) slots: 7
PCI Express x16 (Gen 3.x) slots: 1
PC health monitoring: CPU, Fan, Temperature, Voltage
Power supply: 1000 W
Redundant power supply (RPS) support: Yes
Number of redundant power supplies supported: 2
Number of redundant power supplies installed: 2
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC output current (+12 V): 83 A
80 PLUS certification: 80 PLUS Titanium
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 8 - 90%
Storage temperature (T-T): -40 - 60 °C
Depth: 723 mm
Height: 89 mm
Weight: 16.4 kg
Width: 437 mm
Intelligent Platform Management Interface (IPMI) support: Yes
BIOS type: AMI
BIOS memory size: 32 Mbit
Package weight: 32.7 kg
brand_ice: SUPERMICRO
Co2 Savings: 544.06
Chassis type: Rack (2U)
Colour of product: Black
LED indicators: Yes
On/off switch: Yes
Number of fans: 4 fan(s)
Built-in processor: No
Motherboard chipset: Intel® C621
Processor socket: LGA 3647 (Socket P)
Processor family: Intel® Xeon®
Number of processors supported: 2
System bus rate: 10.4 GT/s
Compatible processor series: Intel® Xeon®
Number of DIMM slots: 24
Supported memory types: DDR4-SDRAM
Maximum internal memory: 3.07 TB
Maximum RDIMM memory: 3.07 TB
Supported RDIMM clock speeds: 2133,2400,2666 MHz
Memory voltage: 1.2 V
ECC: Yes
Number of storage drives supported: 12
Hot-swap HDD bays: Yes
Number of 3.5" bays: 12
Storage drive sizes supported: 3.5"
Supported storage drive interfaces: Serial Attached SCSI (SAS)-3, Serial ATA III
RAID levels: 0, 1, 5, 10
On-board graphics card model: Aspeed AST2500
Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
LAN controller: Intel® I350
USB 3.0 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN (RJ-45) ports quantity: 5
IPMI LAN (RJ-45) port: Yes
VGA (D-Sub) ports quantity: 2
Serial ports quantity: 1
Number of SAS ports: 12
PCI Express x8 (Gen 3.x) slots: 7
PCI Express x16 (Gen 3.x) slots: 1
PC health monitoring: CPU, Fan, Temperature, Voltage
Power supply: 1000 W
Redundant power supply (RPS) support: Yes
Number of redundant power supplies supported: 2
Number of redundant power supplies installed: 2
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
DC output current (+12 V): 83 A
80 PLUS certification: 80 PLUS Titanium
Storage relative humidity (H-H): 5 - 95%
Operating temperature (T-T): 10 - 35 °C
Operating relative humidity (H-H): 8 - 90%
Storage temperature (T-T): -40 - 60 °C
Depth: 723 mm
Height: 89 mm
Weight: 16.4 kg
Width: 437 mm
Intelligent Platform Management Interface (IPMI) support: Yes
BIOS type: AMI
BIOS memory size: 32 Mbit
Package weight: 32.7 kg
Supermicro SuperServer 6029U-E1CR4. Motherboard chipset: Intel® C621, Processor socket: LGA 3647 (Socket P), Processor family: Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 3.07 TB, Maximum RDIMM memory: 3.07 TB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial Attached SCSI (SAS)-3, Serial ATA III, RAID levels: 0, 1, 5, 10. On-board graphics card model: Aspeed AST2500. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s, LAN controller: Intel® I350
- Virtualization
- Hyperconverge Storage
- Cloud Computing
- High End Enterprise Server
- Flexible Networking Options
- Virtualization
- Hyperconverge Storage
- Cloud Computing
- High End Enterprise Server
- Flexible Networking Options
