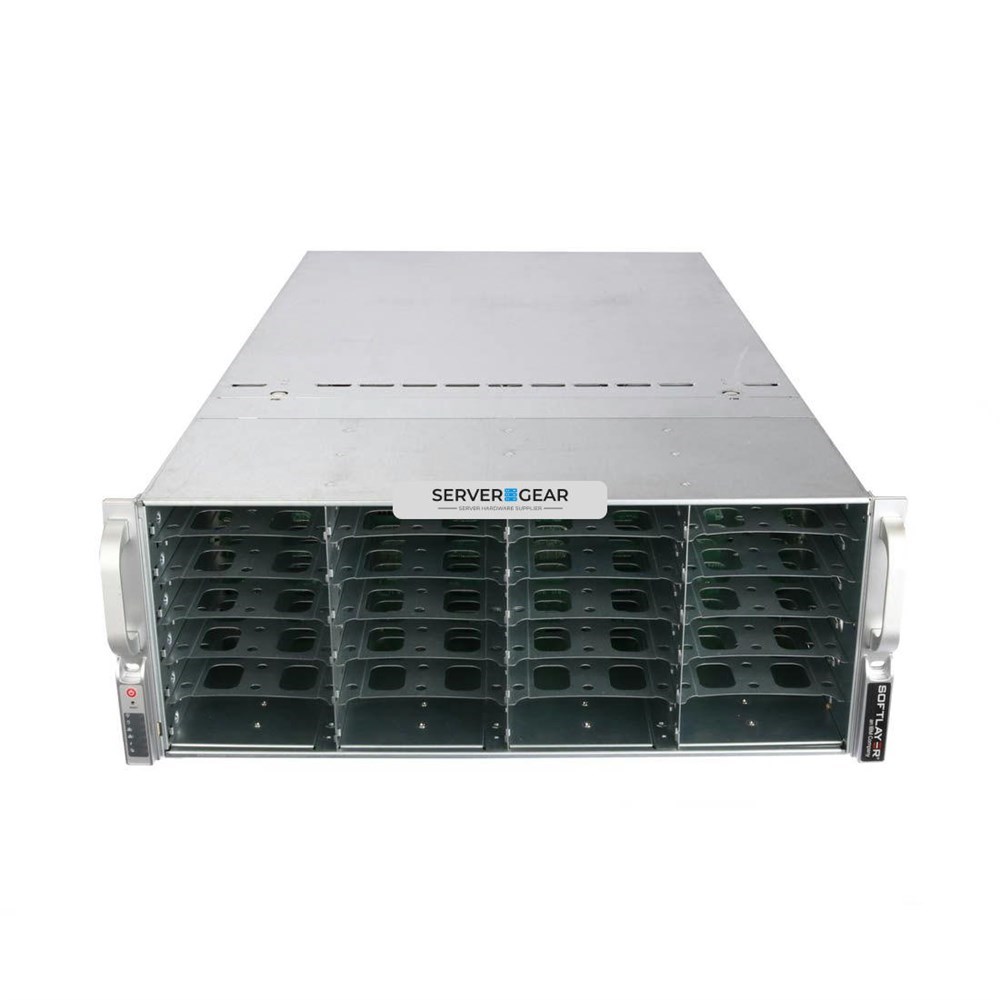

SYS-8048B-TR4FT Сервер Supermicro CSE-848 X10QBI 4U 24x3.5 SYS-8048B-TR4FT (SUPERMICRO)
SYS-8048B-TR4FT Сервер Supermicro CSE-848 X10QBI 4U 24x3.5 SYS-8048B-TR4FT (SUPERMICRO)
Краткое описание: SUPERMICRO SYS-8048B-TR4FT - Supermicro CSE-848 X10QBI 4U 24x3.5 - Same Day Express Shipping offered Worldwide
brand_ice: SUPERMICRO
Co2 Savings: 544.06
Chassis type: Rack (4U)
Colour of product: Black
Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 7 fan(s)
Hot-swap fan module: Yes
Number of hot-swap fan modules: 2
Certification: RoHS
Built-in processor: No
Motherboard chipset: Intel® C602J
Processor socket: LGA 2011 (Socket R)
Number of processors supported: 4
System bus rate: 9.6 GT/s
Maximum cache: 60 MB
Intel Xeon series: E7-8800
Number of DIMM slots: 96
Supported memory types: DDR4-SDRAM
Supported DIMM module capacities: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Maximum internal memory: 12 TB
Maximum RDIMM memory: 12 TB
Supported RDIMM clock speeds: 800,1066,1333,1600,1866 MHz
Memory voltage: 1.2 V
ECC: Yes
Number of storage drives supported: 24
Hot-swap HDD bays: Yes
Number of 3.5" bays: 24
Storage drive sizes supported: 3.5"
Supported storage drive types: HDD
Supported storage drive interfaces: Serial ATA II, Serial ATA III
On-board graphics card model: Aspeed AST2400
Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,1200,2500,5000,10000 Mbit/s
Copper ethernet cabling technology: 10GBASE-T
LAN controller: Intel® X540
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports quantity: 2
IPMI LAN (RJ-45) port: Yes
PCI Express x8 (Gen 3.x) slots: 4
PCI Express x16 (Gen 3.x) slots: 4
PC health monitoring: CPU, Fan, Temperature
Power supply: 1620 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 12 A
DC output current (+5 V): 4 A
DC output current (+12 V): 150 A
Thermal Design Power (TDP): 165 W
80 PLUS certification: 80 PLUS Platinum
Depth: 815 mm
Height: 178 mm
Weight: 33.8 kg
Width: 437 mm
Sustainability certificates: RoHS
BIOS type: EEPROM
BIOS memory size: 16000 Mbit
ACPI version: 3.0
Plug and Play: Yes
BIOS features: PCI 2.2, Plug & Play
Package width: 685.8 mm
Package depth: 1110 mm
Package height: 381 mm
Package weight: 52.2 kg
brand_ice: SUPERMICRO
Co2 Savings: 544.06
Chassis type: Rack (4U)
Colour of product: Black
Cooling type: Active
Fan diameter: 9.2 cm
Number of fans: 7 fan(s)
Hot-swap fan module: Yes
Number of hot-swap fan modules: 2
Certification: RoHS
Built-in processor: No
Motherboard chipset: Intel® C602J
Processor socket: LGA 2011 (Socket R)
Number of processors supported: 4
System bus rate: 9.6 GT/s
Maximum cache: 60 MB
Intel Xeon series: E7-8800
Number of DIMM slots: 96
Supported memory types: DDR4-SDRAM
Supported DIMM module capacities: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Maximum internal memory: 12 TB
Maximum RDIMM memory: 12 TB
Supported RDIMM clock speeds: 800,1066,1333,1600,1866 MHz
Memory voltage: 1.2 V
ECC: Yes
Number of storage drives supported: 24
Hot-swap HDD bays: Yes
Number of 3.5" bays: 24
Storage drive sizes supported: 3.5"
Supported storage drive types: HDD
Supported storage drive interfaces: Serial ATA II, Serial ATA III
On-board graphics card model: Aspeed AST2400
Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet
Ethernet LAN data rates: 10,100,1000,1200,2500,5000,10000 Mbit/s
Copper ethernet cabling technology: 10GBASE-T
LAN controller: Intel® X540
USB 2.0 ports quantity: 2
Ethernet LAN (RJ-45) ports quantity: 2
IPMI LAN (RJ-45) port: Yes
PCI Express x8 (Gen 3.x) slots: 4
PCI Express x16 (Gen 3.x) slots: 4
PC health monitoring: CPU, Fan, Temperature
Power supply: 1620 W
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Input current: 12 A
DC output current (+5 V): 4 A
DC output current (+12 V): 150 A
Thermal Design Power (TDP): 165 W
80 PLUS certification: 80 PLUS Platinum
Depth: 815 mm
Height: 178 mm
Weight: 33.8 kg
Width: 437 mm
Sustainability certificates: RoHS
BIOS type: EEPROM
BIOS memory size: 16000 Mbit
ACPI version: 3.0
Plug and Play: Yes
BIOS features: PCI 2.2, Plug & Play
Package width: 685.8 mm
Package depth: 1110 mm
Package height: 381 mm
Package weight: 52.2 kg
Supermicro SuperServer 8048B-TR4FT. Motherboard chipset: Intel® C602J, Processor socket: LGA 2011 (Socket R), System bus rate: 9.6 GT/s. Supported memory types: DDR4-SDRAM, Supported DIMM module capacities: 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, Maximum internal memory: 12 TB. Storage drive sizes supported: 3.5", Supported storage drive types: HDD, Supported storage drive interfaces: Serial ATA II, Serial ATA III. On-board graphics card model: Aspeed AST2400. Ethernet interface type: 10 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,1200,2500,5000,10000 Mbit/s, Copper ethernet cabling technology: 10GBASE-T
