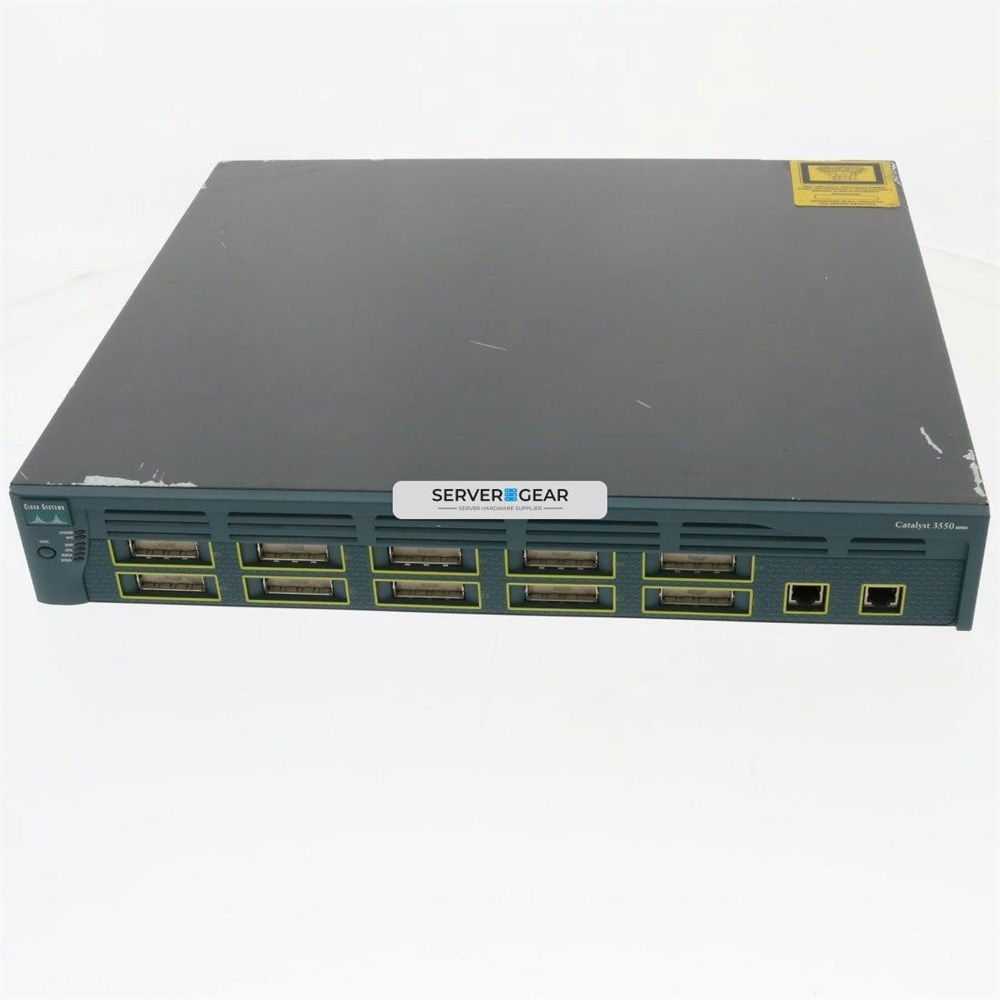

WS-C3550-12G Переключатель Cisco WS C3550 12G Gigabit Switch 10 x GBIC 2 Copp WS-C3550-12G (CISCO)
WS-C3550-12G Переключатель Cisco WS C3550 12G Gigabit Switch 10 x GBIC 2 Copp WS-C3550-12G (CISCO)
Краткое описание: CISCO WS-C3550-12G - Cisco WS C3550 12G Gigabit Switch 10 x GBIC 2 Copp - Same Day Express Shipping offered Worldwide
brand_ice: CISCO
Co2 Savings: 343.78
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 12
Full duplex: Yes
MAC address table: 12000 entries
Maximum data transfer rate: 1 Gbit/s
Management protocols: SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP 3
Data link protocols: Gigabit Ethernet
Minimum RAM: 64 MB
Power consumption (typical): 190 W
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 10 - 85%
Weight: 7.3 kg
Dimensions (WxDxH): 445 x 404 x 67 mm
Connectivity technology: Wired
Power requirements: 100 to 127/200 to 240 VAC (auto-ranging), 50 to 60 Hz
Networking features: IEEE 802.1d Spanning Tree Bridge, IEEE 802.1p LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization, IEEE 802.1Q Virtual LANs (VLAN), IEEE 802.3 CSMA/CD or Ethernet, IEEE 802.3u 100 Mbps (Fast Ethernet), IEEE 802.3ab 1000 Mbps (Gigabit Ethernet), IEEE 8
Bundled software: Enhanced Multilayer Software Image (EMI)
Expansion slots: 10 (10) x GBIC
I/O ports: 10 GBIC-based Gigabit Ethernet ports 2 10/100/1000 ports
brand_ice: CISCO
Co2 Savings: 343.78
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 12
Full duplex: Yes
MAC address table: 12000 entries
Maximum data transfer rate: 1 Gbit/s
Management protocols: SNMP 1, SNMP 2, RMON 1, RMON 2, SNMP 3
Data link protocols: Gigabit Ethernet
Minimum RAM: 64 MB
Power consumption (typical): 190 W
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 10 - 85%
Weight: 7.3 kg
Dimensions (WxDxH): 445 x 404 x 67 mm
Connectivity technology: Wired
Power requirements: 100 to 127/200 to 240 VAC (auto-ranging), 50 to 60 Hz
Networking features: IEEE 802.1d Spanning Tree Bridge, IEEE 802.1p LAN Layer 2 QoS/CoS Protocol for Traffic Prioritization, IEEE 802.1Q Virtual LANs (VLAN), IEEE 802.3 CSMA/CD or Ethernet, IEEE 802.3u 100 Mbps (Fast Ethernet), IEEE 802.3ab 1000 Mbps (Gigabit Ethernet), IEEE 8
Bundled software: Enhanced Multilayer Software Image (EMI)
Expansion slots: 10 (10) x GBIC
I/O ports: 10 GBIC-based Gigabit Ethernet ports 2 10/100/1000 ports
Cisco Catalyst WS-C3550-12G. Switch type: Managed. Basic switching RJ-45 Ethernet ports quantity: 12. Full duplex. MAC address table: 12000 entries
The Cisco Catalyst® 3550 12G is a member of the Catalyst 3550 Series Intelligent Ethernet Switches, a line of enterprise-class, stackable, multilayer switches that provide high availability, security and quality of service (QoS) to enhance the operation of the network. With a range of Fast Ethernet and Gigabit Ethernet configurations, the Catalyst 3550 Series can serve as both a powerful access layer switch for medium enterprise wiring closets and as a backbone switch for mid-sized networks.
For the first time, customers can deploy network-wide intelligent services, such as advanced quality of service (QoS), rate-limiting, Cisco security access control lists, multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching.
The Catalyst 3550 12G switch provides:
• 10 GBIC-based Gigabit Ethernet ports and 2 10/100/1000 ports
• 1.5 rack unit (RU) stackable, multilayer Gigabit Ethernet switch
• Delivers full dynamic IP routing and intelligent services to the network edge
• Enhanced Multilayer Software Image (EMI) installed
• Ideal for stack aggregation, server aggregation, mini-POP aggregation, or small network cores and backbones
The Cisco Catalyst® 3550 12G is a member of the Catalyst 3550 Series Intelligent Ethernet Switches, a line of enterprise-class, stackable, multilayer switches that provide high availability, security and quality of service (QoS) to enhance the operation of the network. With a range of Fast Ethernet and Gigabit Ethernet configurations, the Catalyst 3550 Series can serve as both a powerful access layer switch for medium enterprise wiring closets and as a backbone switch for mid-sized networks.
For the first time, customers can deploy network-wide intelligent services, such as advanced quality of service (QoS), rate-limiting, Cisco security access control lists, multicast management, and high-performance IP routing-while maintaining the simplicity of traditional LAN switching.
The Catalyst 3550 12G switch provides:
• 10 GBIC-based Gigabit Ethernet ports and 2 10/100/1000 ports
• 1.5 rack unit (RU) stackable, multilayer Gigabit Ethernet switch
• Delivers full dynamic IP routing and intelligent services to the network edge
• Enhanced Multilayer Software Image (EMI) installed
• Ideal for stack aggregation, server aggregation, mini-POP aggregation, or small network cores and backbones
